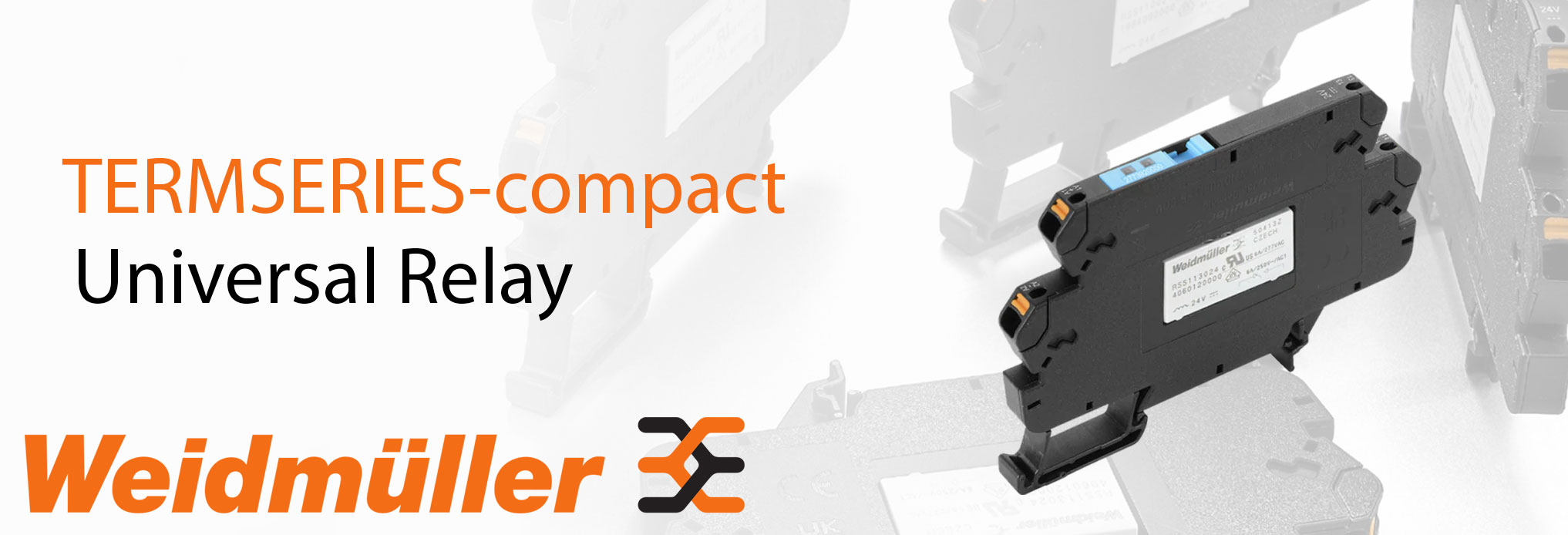

To achieve maximum machine and system availability, many relays must also function reliably in environments with strong vibrations. In addition, compact modules for flat control cabinets are required. TERMSERIES-compact fulfils both demands. The new, ultra-compact complete modules round out the TERMSERIES family. These relays are integral, which makes them particularly vibration-proof. Due to the slim and, above all, flat design, they can be installed anywhere. And since they have the same contours as the tried-and-tested TERMSERIES, all the accessories of the series can be used – for cross-connections, for example. In this way, comprehensive complete solutions can be realized with the 100% function-tested relay modules.
- 100% vibration-proof thanks to enclosed design
- 1 Form C contact or 1 Normally Open contact
- Unique multi-voltage input from 12 to 60 V UC and 24 to 230 VUC
- Input voltages from 5 VDC to 230 VUC with colored marking: AC: red, DC: blue, UC: white
- Particularly tamper-proof thanks to permanently installed relays
- Partition plates for optical separation and reinforcement of insulation
 Download the TERMSERIES - Compact Electromechanical Relays specification sheet in *.pdf format
|
