WAA-Encoder - Applied Motion Products Incremental Encoder for HT17 Step Motors (970-1012)

WAA Encoder - Applied Motion Products
WAA Encoder

Price: $192.85
Manufacturer SKU: WAA Encoder
Manufacturer ID: 970-1012


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: WAA-ENCODER
Qty:

Description

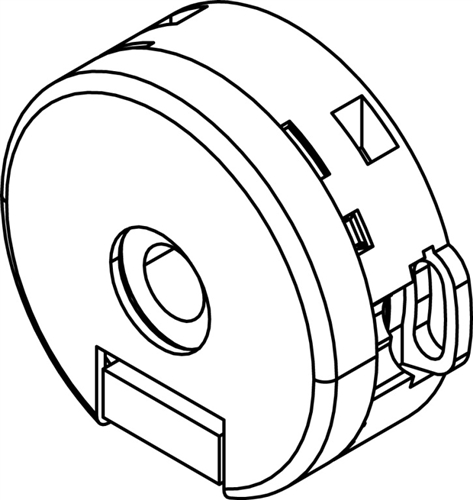

The WAA incremental encoder fits on the rear shafts of HT17 step motors. To order the encoder factory-assembled onto the rear shaft of the motor add the WAA suffix to the end of the double-shaft step motor part number. For example, order HT17-268D-WAA to purchase the HT17-268D step motor and WAA encoder as a single, factory-assembled part number.

To connect the WAA encoder to your stepper drive or motion controller you’ll need the 3004-195-10 encoder extension cable.

WAA encoders can also be ordered separately. Use part number 970-1012 to order the encoder separately.


  • Fits onto rear shaft of HT17 step motors
  • 5 mm hub diameter
  • 2000 lines (8000 counts per rev.)
  • A, B, and Z (Index) channels
  • Differential outputs
  • Use with 3004-195-10 extension cable
