C628-10050 - Veeder-Root TOTALIZER, RS-485, UNIV AC

C628-10050 - Danaher Specialty Products
C628-10050

Price: $900.00
Returnable: NOT RETURNABLE
Manufacturer SKU: C628-10050


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: C628-10050
Qty:

Description

This part is Non-Cancelable and Non-Returnable once the production order is placed with the factory.

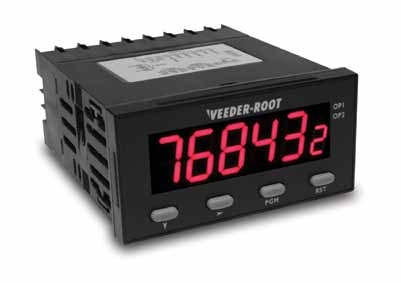

C628-10050 - Veeder-Root TOTALIZER, RS-485, UNIV AC

The Veeder-Root brand C628 Totalizer is a member of a family of 1/8 DIN instruments which offer breakthrough display technology as well as easy-to-program user setup. Its large LED display features the ability to change color based on process status such as exceeding the count preset. Therefore, when monitoring item or piece counting, length measurement, or other critical values, the C628 provides operators with an instant visual alert to changes in the application's status.

Specifications:
  • Product Type Electronic
  • Function Reset Totalizer
  • Size 1/8DIN 48x96mm
  • Voltage 120VAC, 240VAC
  • Frequency 50Hz, 60Hz
  • Input NPN sensor, PNP sensor, Switch/contact closure, Incremental Encoder-Quadrature
  • Batch Preset Without Batch Preset
  • Output Both Relay and Solid State Outputs
  • Input Scaling Input Scaling
  • Number of Digits 5
  • Display LED
  • Programming Keypad, USB
  • Comms RS485/ 422
  • Certifications Can-UL, US-UL, CE
  • Environmental 4X NEMA, IP65
