0799988-402 - Veeder-Root MicroMite Tolalizer; 21mm x 47mm x 13.5mm package; 8 figure; remote reset only

0799988-402 - Danaher Specialty Products
0799988-402

Price: $97.00
Returnable: NOT RETURNABLE
Manufacturer SKU: 0799988-402


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: 0799988-402
Qty:

Description

This part is Non-Cancelable and Non-Returnable once the production order is placed with the factory.

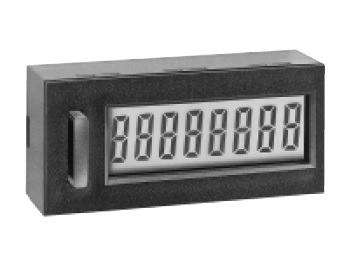

0799988-402 - Veeder-Root MicroMite Tolalizer; 21mm x 47mm x 13.5mm package; 8 figure; remote reset only

A very compact totalizing counter module for printed circuit board mounting. 8 digit, 8mm high, LCD display. Powered by an external lithium battery (not supplied), memory and operation are maintained for a typical life of 8 to 10 years.

Its bidirectional counting inputs, accepts count pulses on one input while a second input commands the counting direction.

PCB solder-pins are provided for electrical connections and molded posts are provided to align mounting position with holes in the host printed circuit board.

  • 8 digit high contrast LCD characters
  • Leading zero blanking
  • Add & subtract operation
  • Available with or without front panel reset
  • Remote reset input
  • External battery life of 8 to 10 years when using 1/2 AA, 900mAH, 3 volt lithium cell
