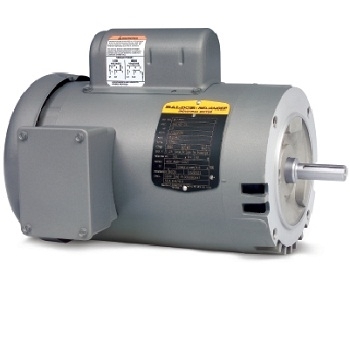

VL1309 - Baldor VEL113 - 1HP, 3480RPM, 1PH, 60HZ, 56C, 3524LC, OPEN, F1
Replacement for Baldor VL1309
Please note that this product does NOT qualify for free shipping and may require truck freight
Applications: Pumps, fans, conveyors, machine tools, gear reducers and other applications requiring a NEMA C-Face motor.
Features: Pressure cast aluminum end plates with ribbed design for rigidity. Ball bearings with a locked drive end bearing, heavy-gauge steel frame.
VL1309
Phase |
1 |
Output |
1.00 hp |
Synchronous Speed |
3,600 rpm |
Frequency |
60 Hz |
Voltage |
115 V |
|
230 V |
Enclosure |
ODP |
Frame Material |
Steel |
Frame |
56C |
XP Division |
Not Applicable |
Brand |
Baldor-Reliance |
Agency Approvals |
CSA UR |
Ambient Temperature |
40 °C |
Auxillary Box |
No Auxillary Box |
Auxillary Box Lead Termination |
None |
Base Indicator |
No Mounting |
Bearing Grease Type |
POLYREX EM (-20F +300F) |
Blower |
None |
Current |
7.8 A @ 115 V |
|
5.5 A @ 208 V |
|
3.9 A @ 230 V |
Design Code |
N |
Drip Cover |
Drip Cover |
Duty Rating |
CONT |
Efficiency @ 100% Load |
82.00% |
Electrically Isolated Bearing |
No electrically isolated |
Feedback Device |
No feedback |
Front Face Code |
Drip Cover Mounting |
Front Shaft Indicator |
None |
Heater Indicator |
No heater |
High Voltage Full Load Amps |
3.9 A |
Insulation Class |
B |
Inverter Code |
Not inverter |
KVA Code |
H |
Lifting Lugs |
No Lifting Lugs |
Locked Bearing Indicator |
Locked bearing |
Motor Lead Exit |
Terminal Panel |
Motor Lead Quantity/Wire Size |
4 @ 16 AWG, A PH |
Motor Lead Termination |
None |
Motor Standards |
NEMA |
Motor Type |
3524LC |
Mounting Arrangement |
F1 |
Number of Poles |
2 |
Overall Length (C Dim) |
12.06 in |
Power Factor |
99 |
Product Family |
General Purpose |
Pulley End Bearing Type |
Ball Bearing |
Pulley Face Code |
C-Face |
Pulley Shaft Indicator |
Standard |
Rodent Screen |
No Rodent Screen |
RoHS Status |
|
Service Factor |
1.25 |
Shaft Diameter |
.625 in |
Shaft Extension Location |
Pulley End |
Shaft Ground Indicator |
No Shaft Grounding |
Shaft Rotation |
Reversible |
Shaft Slinger Indicator |
No Slinger |
Speed |
3,480 rpm |
Speed Code |
Single Speed |
Starting Method |
DOL |
Thermal Device - Bearing |
None |
Thermal Device - Winding |
None |
Vibration Sensor Indicator |
No Vibration Sensor |
Winding Thermal 1 |
None |
Winding Thermal 2 |
None |
Manufacturer Warranty: 18 Months*
