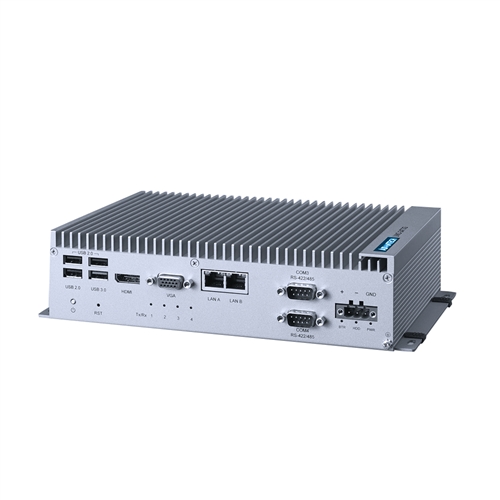

UNO-2473G-E3AE - Advantech COMPUTER SYSTEM, Intel® Atom™ Regular-Size Automation Computer w/ 4 x GbE, 3 x mPCIe, HDMI/VGA
Intel® Atom™ Regular-Size Automation Computer w/ 4 x GbE, 3 x mPCIe, HDMI/VGA
Replacement for Phased-Out: UNO-2173A-A12E, UNO-2173AF-A12E, UNO-2174A-A23E, UNO-2174GL-C44E
The UNO-2473G Family
Advantech’s UNO-2000 series of Embedded Automation Computers are Fanless
with highly ruggedised with an embedded operating system (Linux-
Embedded). It also includes iDoor technology which supports automation
feature extensions such as industry fieldbus communication, Wi-Fi/3G,
Digital I/O, including Palm, Small, and Regular-size Form-Factors with
indicated market segments in terms of entry, value and performance
product positioning. Both entry and value Embedded Automation Computers
feature specific functions and they are suitable for data gateway,
concentrator and data server applications. The performance model can
shorten your development time and offer multiple networking interfaces
to fulfill a diverse range of requirements.
Intel® Atom™ Regular-Size Automation Computer w/ 4 x GbE, 3 x mPCIe, HDMI/VGA
 Download the UNO-2473G-E3AE brochure in *.pdf format
|
General
|
Mounting |
Stand, Wall, VESA (Optional), Din-rail (Optional) |
| OS Support |
Microsoft® Windows 7/8 |
| Power Consumption |
28W (Typical), 72W(Max) |
| Power Requirement |
24VDC ± 20% |
| Weight (Net) |
1.6kg (3.5lbs) |
| Certifications |
CE, FCC, UL, CCC, BSMI |
| Dimensions (W x H x D) |
252 x 149 x 62 mm (9.9" x 5.9" x 2.4") |
| Enclosure |
Aluminum Housing |
| Form Factor |
Regular Size |
|
System Hardware
|
Expansion |
3 x Full-size mPCIe slot, mPCIe 2.0 |
| LED Indicators |
LEDs for Power, battery, LAN (Active, Status), Tx/Rx and HDD |
| Storage |
One mSATA, one drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD), CFast drive by iDoor Technology (Optional) |
| Graphics Engine |
Intel® HD Graphics 5000/4400 |
| Memory |
On-board 4GB DDR3L 1333/1600 MHz |
| Processor |
Intel® Atom™ Processor E3845 1.91 GHz Quad Core, 2MB L2 |
| System Chip |
Integrated Intel 8 Series Chipset |
| BIOS |
AMI UEFI 128Mbit Flash BIOS |
| Watchdog Timer |
Programmable 256 levels timer interval, from 1 to 255 sec |
|
I/O Interface
|
Audio |
Line-In, Line-Out |
| Displays |
1x VGA (2560x1600), 1x HDMI (1920x1200) |
| Grounding Protection |
Chassis Grounding |
| LAN |
4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet |
| Power Connector |
1 x 3 Pins, Terminal Block |
| Serial Ports |
1x RS-232, DB9, 50~115.2kbps, 2x RS-422/485, DB9, auto flow control, 50~115.2kbps |
| USB Ports |
4x USB Ports (3 x USB2.0, 1 x USB3.0 compliant) |
|
Environment
|
Ingress Protection |
IP40 |
| Vibration Protection |
Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA). Operating, IEC 60068-2-64, 0.7Grms, random, 5 ~ 500Hz, 1hr/axis (HDD) |
| Operating Temperature |
-20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow |
| Relative Humidity |
10 ~ 95% @ 40° C (non-condensing) |
| Shock Protection |
Operating, IEC 60068-2-27, 50G, half sine, 11ms |
| Storage Temperature |
- 40 ~ 85°C ( -40 ~ 185°F) |
|
|
|
 |
|
 |
|
