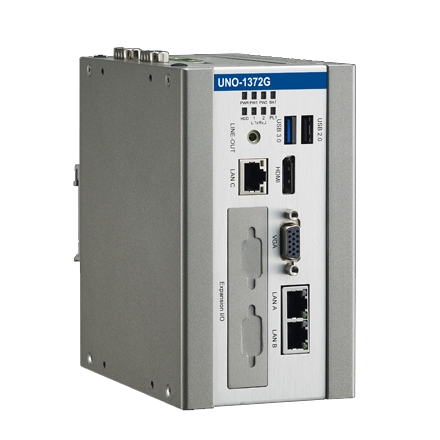

UNO-1372G-E3AE - Advantech COMPUTER SYSTEM, Intel® Atom™ Quad-Core Small-Size Control DIN-Rail PC w/ 3 x GbE, 2 x mPCIe, 1 mSATA, 2 x COM, 8 x DI/O, 3 x USB, HDMI/VGA
Replacement for Obsolete Advantech UNO-1150G-G30E, UNO-1150GE-G30E, UNO-1150GH-G30E, UNO-1150GHE-G30E, UNO-1172AH-A33E
The UNO-1372G is an Intel Atom Quad-Core DIN-Rail controller. This controller featured with dual power input that shorten the down time to enhance operation excellence. The general purpose input/output ports also help machine builders integrate direct control of start/stop inspection and indicate inspection results. The UNO-1372G is also equipped with Advantech iDoor technology that uses iDoor modules to extend this product to become a gateway controller, such as a PoE card, or isolation serial port card. The UNO-1372G also features 3 gigabyte LAN ports, 1 USB 3.0 port, 2 COM ports and HDMI& VGA display ports for essential upstream and downstream links, for example, PoE connected to IP camera from iDoor.
Intel® Atom™ Quad-Core Small-Size Control DIN-Rail PC w/ 3 x GbE, 2 x mPCIe, 1 mSATA, 2 x COM, 8 x DI/O, 3 x USB, HDMI/VGA
 Download the UNO-1372G-E3A brochure in *.pdf format
|
General
|
Certification
|
CE, FCC, CCC, BSMI, UL
|
|
Dimensions (W x H x D)
|
85 x 139 x 152 mm (3.3" x 5.5" x 6.0") |
| Form Factor |
Micro Size |
| Enclosure |
Aluminum Housing |
| Mounting |
DIN-rail, Wallmount |
| Weight (Net) |
1.6kg (3.5lbs) |
| Power Requirements |
9~36 VDC |
| Power Consumption |
24W (Typical) |
| OS Support |
Microsoft® Windows 7/8, WES7/WES8, Linux |
|
System Hardware
|
BIOS |
AMI UEFI 128Mbit Flash BIOS |
| Watchdog Timer |
Programmable 6 levels timer interval, from 15 to 255 sec |
| Processor |
Intel Atom E3845 1.91GHz, 2MB L2 Cache |
| System Chip |
Integrated Intel SoC Chipset |
| Memory |
On-board 4GB DDR3L 1333 MHz |
| Graphics Engine |
Intel® HD Graphics |
| Ethernet |
Intel® i210-IT GbE, 802.1Qav, 802.1AS, 802.3az |
| LED Indicators |
LEDs for Power, battery, LAN (Active, Status), Tx/Rx and HDD |
| Storage |
One drive bay for SATA 2.5" HDD (Compatible with 9.5mm
height HDD) CFast drive by iDoor Technology (Optional) |
| Expansion |
2 x Full-size mPCIe slot,1x mSATA (Full-size) |
|
|
|
Environment
|
Operating Temperature |
- 20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow
(Industry SSD) |
| Storage Temperature |
- 40 ~ 85°C ( -40 ~ 185°F) |
| Relative Humidity |
95% RH @ 40°C, non-condensing |
| Shock Protection |
Operating, IEC 60068-2-27, 50G, half sine,
11ms |
| Vibration Protection |
Operating, IEC 60068-2-64, 2 Grms, random,
5 ~ 500Hz, 1 hr/axis |
| Ingress Protection |
IP40 |
|
I/O Interface
|
Isolated Serial Ports |
1 x RS-232, DB9, 50~115.2kbps
1 x RS-422/485, DB9, auto flow control, 50~115.2kbps |
| LAN Ports |
3 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast
Ethernet, support Jumbo Frame |
| USB Ports |
3 x USB Ports (2 x USB2.0, 1 x USB 3.0 compliant ) |
| Isolated DI/O |
4-ch digital input, (Wet/dry contact with Isolation Protection
2,500 VDC) 4-ch digital output (Compatible 5 V/TTL,
Capable Sink: 24 mA max. per channel) |
| Displays |
1 x VGA, supports 1920 x 1200 @ 60Hz 24bpp
1 x HDMI 1.4a, supports 1920 x 1080 @ 60Hz 24bpp |
| Power Connector |
1 x 4 Pins, Terminal Block to support dual power input |
| Grounding Protection |
Chassis Grounding |
| Audio |
Line-Out |
|
|
|
 |
|
 |
|
