TURCK's PK series pressure sensors were designed to provide an economical sensor option for switch point detection in air and inert gas applications. The compact sensors are IP 65 rated, and ideal for use in pneumatic and robotic applications. PK series pressure sensors are available in two body styles: the pico and nano style to provide for a broader range of mounting options. The sensor is programmed through easy-to-use push buttons, and the menu may be inverted for additional programming flexibility. PK series pressure sensors are available in the two pressure ranges most commonly found in pneumatic applications: -29.5 to 0 inHg and 0 to 145 psi, with 3% accuracy.

PK Sensors - Specifications

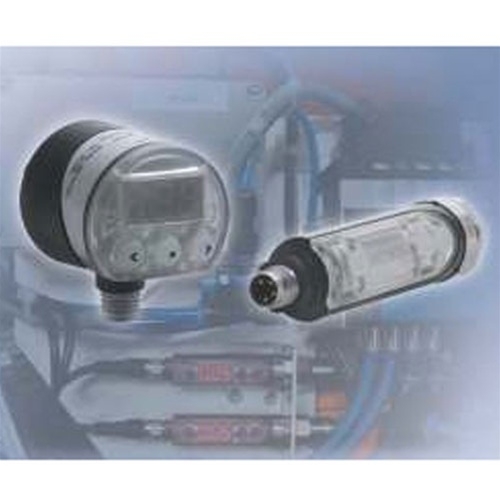

Two Housing Options. . . . . . . . . . . . . . Both are Small, Small, Small
Nano Housing . . . . . . . . . . . . . . 1.30" x 1.18"
Pico Inline Housing . . . . . . . . . . . . . . 2.96" X .63"

Measuring Medium . . . . . . . . . . . . Filtered compressed air, lubricated or unlubricated, inert gases

Response Time . . . . . . . . . . . . . . <2.5 ms
Display . . . . . . . . . . . . . . . . . . 3 digit 7 segment display
Ambient Temperature Error . . . . . . . . 3% of measured value at 0 to 50°C
