TSD2434 - SSAC Timer Interval 120VAC SS Adjustable 1 100m 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > TSD2 Series >

TSD2434

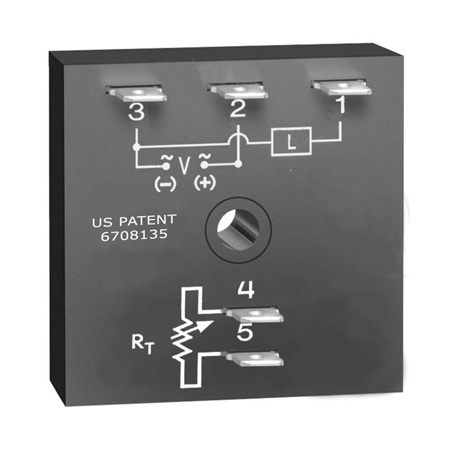

This is a family photo and may not be an accurate representation of the product.

Price: $61.62

Returnable: NOT RETURNABLE
Manufacturer SKU: TSD2434
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: TSD2434

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

TSD2434 - SSAC Timer Interval 120VAC SS Adjustable 1 100m 2x2

The TSD2 Series Family

The TSD Series is designed for more demanding commercial and industrial applications where small size and accurate performance are required. The factory calibration for fixed time delays is within 1% of the target time delay. The repeat accuracy, under stable conditions, is 0.1% of the time delay. The TSD Series is rated to operate over an extended temperature range. Time delays of 0.1 seconds to 100 hours are available. The output is rated 1A steady and 10A inrush. The modules are totally solid state and encapsulated to protect the electronic circuitry.

Operation (Interval):
Upon application of input voltage, the time delay begins. The output is energized during the time delay. At the end of the time delay, the output de-energizes and remains de-energized until input voltage is removed.
Reset: Removing input voltage resets the time delay and the output.

Features:

Fixed or adjustable delays from 0.1s - 100h

±0.1% repeat accuracy

±1% factory calibration

24, 120, or 230VAC

1A, solid-state output

Encapsulated

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-95

P/N: P1004-95-X

Female quick connect: P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor: P/N: P1015-18

Mounting bracket: P/N: P1023-6

Versa-knob: P/N: P0700-7

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20

Download the The SSAC Product Line catalog in *.pdf format
Download the The TSD2 Series Datasheet datasheet in *.pdf format
