TDUB3000A - SSAC Timer Delay-on-Break 24 120VAC 1A Dip Switch 1 1023s 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > TDUB Series >

TDUB3000A

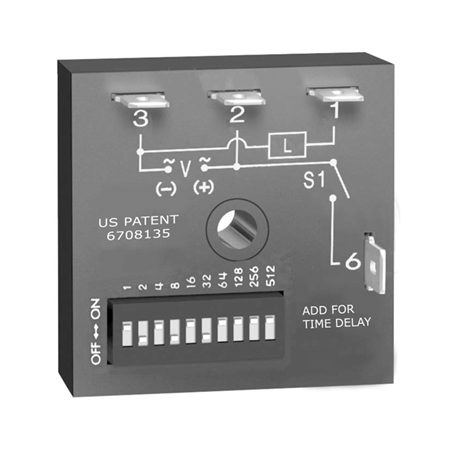

This is a family photo and may not be an accurate representation of the product.

Price: $72.88

Manufacturer SKU: TDUB3000A
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: TDUB3000A

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

TDUB3000A - SSAC Timer Delay-on-Break 24 120VAC 1A Dip Switch 1 1023s 2x2

The TDUB Series Family

The TDUB Series combines digital timing circuitry with universal voltage operation. Voltages of 24 to 240VAC and 12 to 24VDC are available in three ranges. The TDUB Series offers DIP switch selectable time delays ranging from 0.1 seconds to 102.3 minutes in three ranges. Its 1A rated output, ability to operate on multiple voltages, and wide range of switch selectable time delays make the TDUB Series an excellent choice for process control systems and OEM equipment.

Operation (Delay-on-Break):
Input voltage must be applied before and during timing. Upon closure of the initiate switch, the output energizes. The time delay begins when the initiate switch is opened (trailing edge triggered). The output remains energized during timing. At the end of the time delay, the output de-energizes. The output will energize if the initiate switch is closed when input voltage is applied.
Reset: Reclosing the initiate switch during timing resets the time delay. Loss of input voltage resets the time delay and output.

Features:

Switch selectable time setting

0.1s - 102.3m in 3 ranges

± 0.5% repeat accuracy

± 2% setting accuracy

1A, solid-state output

Wide voltage ranges

Auxiliary Products:

Female quick connect:

P/N: P1015-13 (AWG 10/12)

P/N: P1015-64 (AWG 14/16)

P/N: P1015-14 (AWG 18/22)

Quick connect to screw adaptor: P/N: P1015-18

DIN rail: P/N: C103PM

DIN rail adaptor: P/N: 1023-20

Download the The SSAC Product Line catalog in *.pdf format
Download the The TDUB Series Datasheet datasheet in *.pdf format
