TDS120ALD - SSAC Timer Single Shot 120VAC Relay 1 1023s 11-PIN DPDT LED

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > TDS / TDSH / TDSL Series >

TDS120ALD

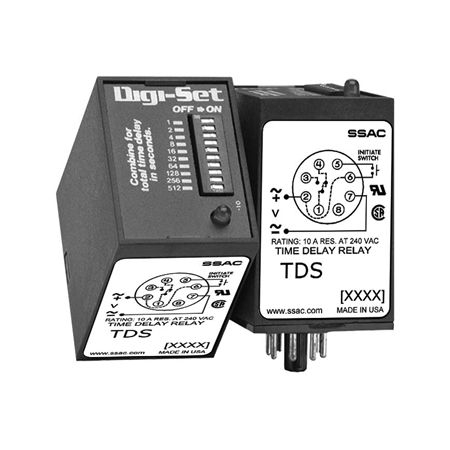

This is a family photo and may not be an accurate representation of the product.

Price: $120.79

Returnable: NOT RETURNABLE
Manufacturer SKU: TDS120ALD
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: TDS120ALD

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

TDS120ALD - SSAC Timer Single Shot 120VAC Relay 1 1023s 11-PIN DPDT LED

The TDS / TDSH / TDSL Series Family

The TDS Series combines accurate digital circuitry with isolated, 10A rated, DPDT or SPDT relay contacts in an 8 or 11-pin plug-in package. The TDS Series features DIP switch selectable time delays ranging from 0.1s to 10,230s in three ranges. The TDS Series is the product of choice for custom control panel and OEM designers.

Operation (Single Shot):
Input voltage must be applied to the input before and during timing. Upon momentary or maintained closure of the initiate switch (leading edge triggered), the output relay energizes for a measured interval of time. At the end of the delay, the output de-energizes. Opening or reclosing the initiate switch during timing has no affect on the time delay. The output will energize if the initiate switch is closed when input voltage is applied.
Reset: Reset occurs when the time delay is complete and the initiate switch is opened. Loss of input voltage resets the time delay and output.

Features:

Switch selectable time delay

Three time ranges from 0.1s - 10,230s

±0.1% repeat accuracy

±2% setting accuracy

10A, SPDT or DPDT output contacts

LED indication

Auxiliary Products:

Panel mount kit: P/N: BZ1

Hold-down clips (sold in pairs):

P/N: PSC8 (NDS-8)

P/N: PSC11 (NDS-11)

11-pin socket: P/N: NDS-11

Octal 8-pin socket: P/N: NDS-8

Octal socket for UL listing: P/N: P1011-6

Download the The SSAC Product Line catalog in *.pdf format
Download the The TDS / TDSH / TDSL Series Datasheet datasheet in *.pdf format
