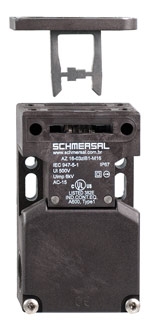

AZ16-03Zi-B1-2024 - Schmersal Keyed Interlock switch ( 801000045 )

AZ16-03Zi-B1-2024 - Schmersal
AZ16-03Zi-B1-2024
Larger Photo
Alternative Views:
Manufacturer SKU: AZ16-03Zi-B1-2024
Manufacturer ID: 801000045


Free Shipping
Availability: Usually Ships in 3 to 5 Business Days
Part Number: AZ16-03ZI-B1-2024
Call, Email, or Live Chat for Pricing or to Order

Description

The Series AZ16zi are designed for use with movable machine guards which must be closed for operator safety. Their tamper-resistant design, and positive-opening NC contacts, provide a significantly higher level of safety than conventional spring-driven switches whose contacts can weld/stick shut. Their IP67 rating makes them ideal for interlocking safety guards in hostile environments.

• Thermoplastic enclosure
• Individual coding
• 52 mm x 90 mm x 30 mm
• Long life
• Double-insulated
• Large wiring compartment
• High level of contact reliability with low voltages and currents
• Not sensitive to dirty conditions by virtue of patented roller system
• Slotted holes for adjustment, circular holes for location
• For protection against the ingress of course dirt
• 3 cable entries M 16 x 1.5

 pdfClick to View the Schmersal AZ16-03Zi-B1-2024 Data sheet in *.pdf format

 pdfClick to View the Schmersal AZ15/16 Spec sheet in *.pdf format
