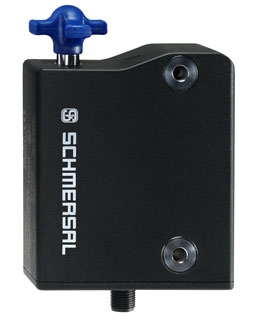

AZM300B-I2-ST-SD2P - Schmersal AZM300B-I2-ST-SD2P Keyed Solenoid Interlock (103001416)

AZM300B-I2-ST-SD2P - Schmersal
AZM300B-I2-ST-SD2P

  $777.00
Manufacturer SKU: AZM300B-I2-ST-SD2P
Manufacturer ID: 103001416


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: AZM300B-I2-ST-SD2P
Call, Email, or Live Chat for Pricing or to Order

Description

*Note: This is only the keyed solenoid interlock. Actuator is sold separately.*

Specifications:
  • Actuator monitored
  • Individual coding, multiple teaching
  • Serial diagnostic output and 2 safety outputs, p-type
  • Power to unlock
  • Manual release

  • Suitable for mounting to profile systems
  • Thermoplastic enclosure
  • RFID-technology for needs-based protection against tampering
  • 3 different directions of actuation
  • Compact design
  • 3 LEDs to show operating conditions
  • Suitable for hinged and sliding guards
  • Series-wiring
  • Coding level "High" according to ISO 14119
  • Connector M12, 8-pole


An innovative, patented operating principle with rotating shaft and star handle is one of the unique features of the AZM 300 Series. The advantage is that the safety door, when in a close position can be pulled-to and held with practically no free-play. The solenoid interlock is therefore used as a door stop, which eliminates the need for the use of a separate door

The integrated locking ensures that the door remains in the locked position after the interlock is released and does not pop open on its own. The latching force can be increased from 25 N to 50 N simply by turning the star handle 180°. For safe identification of the actuator an RFID sensor is used, featuring three different coding levels thus providing protection against tampering.


One For All Mounting Situations:

  • Symmetrical mounting for right- and left-hinged doors
  • Only one version for hinged and sliding doors
  • Can be used as end stop
  • 3 actuating directions
  • High tolerance to door misalignment
  • Holding force 1,000 N
  • Switchable latching force (25 N / 50 N)
  • Individually coded version with coding level "High" according to ISO 14119
  • PL e / SIL 3
  • Series-wiring without reduction of the safety level
  • Serial diagnostic
  • Low power consumption
  • Power to lock or power to unlock
  • Actuator or solenoid interlock monitoring
  • Hygiene-compliant design: resistant to many cleaning agents
  • Protection class IP69
  • Manual release, emergency exit or emergency release
  • Easily mounted to standard extrusion guards
