*Note: This is only the keyed solenoid interlock. Actuator is sold separately.*
Specifications:
- Actuator monitored
- Individual coding, multiple teaching
- 1 Diagnostic output, p-type and 2 Safety outputs, p-type
- Power to lock
- Manual release
- Suitable for mounting to profile systems
- Thermoplastic enclosure
- RFID-technology for needs-based protection against tampering
- 3 different directions of actuation
- Compact design
- 3 LEDs to show operating conditions
- Suitable for hinged and sliding guards
- Series-wiring
- Coding level "High" according to ISO 14119
- Connector M12, 8-pole

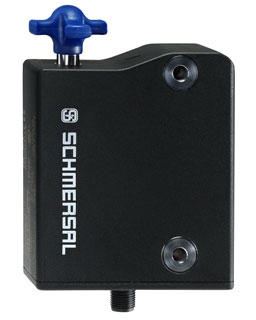

An innovative, patented operating principle with rotating shaft and star handle is one of the unique features of the
AZM 300 Series. The advantage is that the safety door, when in a close position can be pulled-to and held with practically no
free-play. The solenoid interlock is therefore used as a door stop, which eliminates the need for the use of a separate door
The integrated locking ensures that the door remains in the locked position after the interlock is released and does
not pop open on its own. The latching force can be increased from 25 N to 50 N simply by turning the star handle 180°.
For safe identification of the actuator an RFID sensor is used, featuring three different coding levels thus providing
protection against tampering.
One For All Mounting Situations:
- Symmetrical mounting for
right- and left-hinged doors
- Only one version for hinged and sliding doors
- Can be used as end stop
- 3 actuating directions
- High tolerance to door misalignment
- Holding force 1,000 N
- Switchable latching force (25 N / 50 N)
- Individually coded version with
coding level "High" according to ISO 14119
- PL e / SIL 3
- Series-wiring without reduction
of the safety level
- Serial diagnostic
- Low power consumption
- Power to lock or power to unlock
- Actuator or solenoid interlock monitoring
- Hygiene-compliant design: resistant to many cleaning agents
- Protection class IP69
- Manual release, emergency exit or emergency release
- Easily mounted to standard extrusion guards
 Download the Schmersal AZM300 specification sheet PDF and Schmersal AZM300 operating manual PDF
|
|
|
 |
|
 |
|
