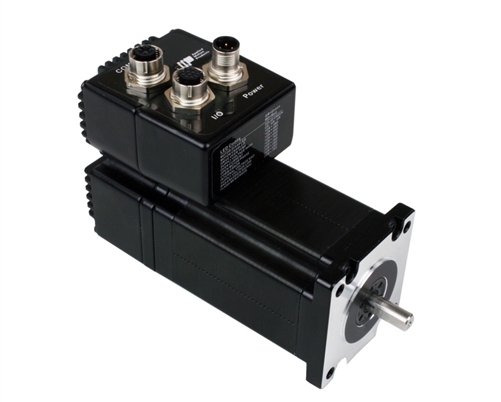

The SWM24QF-3AE integrated stepper is a drive+motor unit, fusing a NEMA 24
step motor and a sophisticated, 6.0 A/phase (peak-of-sine) step motor drive
into a single IP65 rated device. Power to the drive, located at the rear of the
motor, must be supplied by an external DC supply. See Related and Recommended
Products below for compatible 24 and 48 volt DC power supplies.
The SWM24QF-3AE integrated stepper can operate in all of the same control
modes as S models, plus the ability to run a Q program stored in non-volatile
memory. Q programs are created using Applied Motion’s Q Programmer™ software,
which provides powerful commands for motion, I/O, conditional processing,
multi-tasking, math functions, and more. All SWM24 integrated steppers are
setup and configured using Applied Motion’s ST Configurator™ software.
An integral 1000-line (4000 count/rev) incremental encoder is housed inside
the same enclosure as the drive electronics, providing protection from dust and
debris. The integration of the encoder means the stepper can perform special
functions not available otherwise. Stall Detection notifies the system as soon
as the required torque is too great for the motor, which results in a loss of
synchronization between the rotor and stator, also known as stalling. Stall
Prevention actually prevents stalling of the step motor by dynamically
adjusting motor speed to maintain synchronization of the rotor to the stator.
This unique feature allows step motors to operate in a much broader range of
applications than previously available to step motors, such as torque-control applications.
The Stall Prevention feature also performs static position maintenance, which
maintains the position of the motor shaft when at rest.
The SWM24QF-3AE comes with 4 digital I/O points, called Flex I/O points,
because each point can be individually defined as an input or an output. As
inputs, the Flex I/O points accept signals of 5-24 VDC and can be used for
connecting pulse & direction signals, end-of-travel limit switches, jog
switches, quadrature encoder signals, PLC outputs, sensors, or many other
signal types. When defined as digital outputs, the Flex I/O points can be
connected to PLC inputs, counters, lights, relays, or other devices. The unit
also comes with 1 analog input that accepts 0-5 VDC signals, which can be used
for velocity and position control.
The SWM24QF-3AE comes with an RS-232 port for programming and serial
communications.
- Rated IP65 for wet and dusty environments
- M12 connectors
- Anti-resonance
- Torque ripple smoothing
- Microstep emulation
- NEMA 24 frame size
- Q programming mode for stand-alone control
- Modbus/RTU for easy PLC and HMI communication
- Capable of all “S” control modes
- RS-232 port for programming and communications
- Built-in incremental encoder
