DAM00I0UIN6I0000 - Red Lion FlexEdge DA Series I/O Module 6 UNIVERSAL INPUT (DA-M00-I0UIN6-I0-000)

DAM00I0UIN6I0000 - Red Lion
DAM00I0UIN6I0000

Price: $572.00
Manufacturer SKU: DAM00I0UIN6I0000
Manufacturer ID: DA-M00-I0UIN6-I0-000


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: DAM00I0UIN6I0000
Qty:

Description

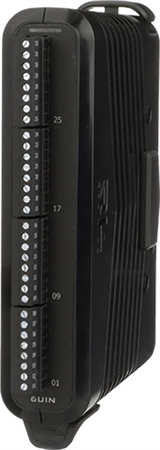

DAM00I0UIN6I0000 - Red Lion FlexEdge DA Series I/O Module 6 UNIVERSAL INPUT (DA-M00-I0UIN6-I0-000)

The 6UIN I/O module features 6 Universal Analog Inputs operating at 16-bit resolution, which makes it an ideal choice for data acquisition applications. The module can accept a wide range of thermocouples and RTDs, as well as 0/4-20 mA and 0-10 V process signals. Each input has a dedicated alarm LED that indicates a variety of conditions.

FEATURES
  • Six (6) Universal Analog Inputs
  • Universal Inputs Accept TC, RTD, 0-5 V, 0-10 V, 0-20 mA, 4-20 mA, 0-50 mV Signals
  • Offers Complete Isolation; Inputs, Power, and Communication
  • At-a-Glance Module Status Indicator
  • Individual Channel LEDs for Troubleshooting and Testing
  • Hot Swappable with Zero Configuration
  • UL Class 1, Division II and ATEX/IECEx
