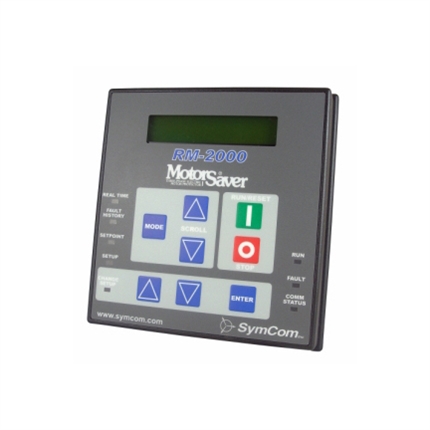

RM-2000 - SymCom Remote Monitor for 1 Device Real-Time Clock 115V Input
The RM-2000 Family
A motor-monitoring device to be used in conjunction with SymCom's Model 777 family of products (excluding the P1 Series), 77C family of products and the Model 601 voltage monitors, via Modbus protocol with a communications module. The RM-2000/777 motor management system combines unsurpassed electronic motor protection and critical, user-friendly, motor monitoring.
The RM-2000 has membrane keypad controls which allow both monitoring and control of a 777 MotorSaver ®* through an RS-485 network using Modbus RTU protocol. A second communication port allows monitoring and control of up to 99 RM-2000 devices from a PLC, DCS, or SCADA system or a PC with Solutions software installed. The RM-2000 will act as a repeater for its motor protector when accessed from the host computer or PLC. In addition to the monitoring functions, the RM-2000 can be used to reset a tripped MotorSaver® or PumpSaver®.
The RM-2000 is easily mounted remotely and improves safety for service and operations personnel by allowing them to control and monitor the device without opening the electrical cabinet. Using the RM-2000 is a simple, cost-effective method for aiding compliance with arc flash safety regulations. The enclosure and keypad assembly is water and ultraviolet light resistant.
Features:
- Displays:
- Average current, individual line currents and current unbalance
- Current to ground
- Average voltage, line-line voltages and voltage unbalance
- Instantaneous power
- Power factor
- Last four faults
- All parameters programmed into 777 MotorSaver®
- Remaining restart delay times
- Controls:
- Start and stop buttons
- Key lock input to prevent setpoint changes
- Change 777 setpoints from keypad
- The RM-2000 is also equipped with a real-time clock, which allows access to the following motor management information (most readings can be reset):
- Total motor run-time
- Time and date of last four faults, along with voltage and current at time of trip
- Time and date of last 10 motor starts
- Total number of motor restarts
- Minimum time between any two starts with time and date
- Run-time since last start
- kWh consumed
- kVARs consumed
Auxiliary Products:
- P/N: 777-P2, P/N: 777-KW/HP-P2
- Communication Modules: P/N: RS485MS-2W, P/N: CIO-MB, P/N: CIO-120-MB
- Solutions Software P/N: Solutions-D, P/N: Solutions-M
