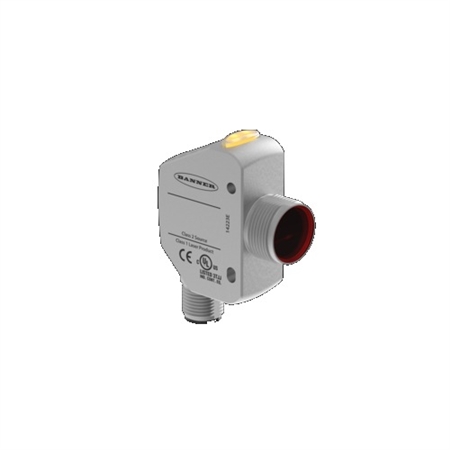

Q4XTBLAF500-Q8 - Banner Engineering Q4X Series: Laser Adjustable Field. Range: 500 mm; Input: 10-30 V dc. Outputs: Bipolar: 1 NPN; 1 PNP. 5-pin M12 Integral QD (802595)
|
Model Number
|
Connection
|
Range
|
Output
|
|
Q4XTBLAF500-Q8
|
Euro M12 5-Pin Quick Disconnect
|
500 mm
|
Bipolar (NPN & PNP)
|
Banner’s Q4X is the next generation problem-solving sensor, but it
builds upon and complements existing Banner sensors. The QS18 laser
adjustable field and QS30 expert laser diffuse sensors have been
Banner's go-to, problem-solving products for many years for challenging
part-presence applications. The Q4X expands the types of applications
Banner can solve, by offering a rugged, stainless steel, versatile
sensor that can solve a variety of challenging application and adding
distance-based detection to the product portfolio.
Features
- The ultimate problem solver: reduce sensor inventory with a
reliable, durable sensor that solves the most challenging applications
- Solves difficult distance‐based applications regardless of target
surface reflectivity, including black foam on black plastic, black
rubber in front of metal, multicolor packaging and targets of all colors
- Reliable sensing range of 25 mm (0.98 in) to 500 mm (11.81 in) with best in class excess gain
- Angled four‐digit display with submillimeter resolution is easily viewed from multiple vantage points
- Display provides clear user feedback for easy setup, and bright output indicator provides high visibility of sensor operation
- Intuitive setup utilizing three tactile buttons conveniently located below the display
- Durable and robust construction resists mechanical impact, over tightening and extreme vibration
- FDA grade stainless steel, chemically‐resistant material and laser
marked sensor information withstands aggressive cleaning procedures
- Superior resistance to ambient light interference prevents nuisance output trips under changing lighting conditions
Temperature-compensated design ensures reliable detection during changing temperature conditions
Applications
- Presence/absence
- Part orientation
- Black foam on black plastic
- Shiny package detection
- Multicolor package detection
- Any challenging distance-based application
