Q3XTBLD150-Q8 - Banner Engineering Q3X: Laser Contrast Sensor Range: 150mm Euro M12 5-Pin Integral QD Connector
|
Model Number
|
Connection
|
Range
|
Output
|
|
Q3XTBLD150-Q8
|
Euro M12 5-Pin Integral Connector
|
150 mm
|
Euro M12 5-Pin Integral QD Connector
|

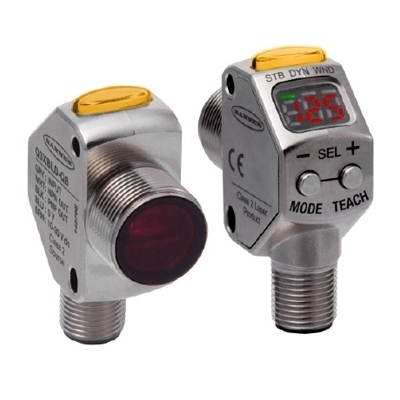

Banner’s Q3X is a problem-solving, laser contrast sensor that builds
upon and complements existing Banner sensors. The QS18 and QS30 laser
diffuse sensors have been Banner’s go-to, problem-solving products for
many years for challenging part-presence applications. The Q3X expands
the types of applications Banner can solve due to its rugged metal
housing, a three digit display for easy to read feedback and versatility
in solving challenging part-detection applications with small contrast
differences.
Features
- Solves challenging part-detection applications with small contrast differences
- High-speed part detection as fast as 250 μs, capturing up to 2,000 events per second
- Angled three-digit display is easily viewed from multiple vantage points
- Display provides clear user feedback for easy setup, and bright output indicator provides high visibility of sensor operation
- Intuitive setup utilizing two tactile buttons located below the display
- Rugged, nickel-plated zinc, laser-marked housing suitable for use
even in environments where cutting fluids and oils might be present
- Rated to IP67, IP68 and IP69K
- Robust immunity to fluorescent light interference
Applications
- High-speed detection
- Part-detection with small contrast changes
- Any challenging application with small contrast changes
 Download the Q3X Instruction Manual in *.pdf format
Download the Q3X Quick Start Guide in *.pdf format
Download the Q3X Laser Contrast Sensor Sell Sheet in *.pdf format
| Sensing Beam |
Laser |
| Sensing Beam Wavelength (nm) |
655 |
| Laser Classification |
Class 2 |
| Max Sensing Range (mm) |
150 |
| Supply Voltage |
10-30 VDC |
| Output Type |
Bipolar (NPN & PNP) |
| Output Response Time (ms) |
0.25 |
| Delay at Power-up (ms) |
1000 |
| Repeatability (ms) |
60 |
| Connection |
Integral QD |
| Number of Pins |
5 |
| IP Rating |
IP67, IP68, IP69K |
| Min Operating Temperature (°C) |
-10 |
| Max Operating Temperature (°C) |
50 |
| Maximum Op Relative Humidity (%) |
95% at 55°C |
| Lens Material |
Acrylic |
| Adjustments |
Teach Button |
| Barrel Diameter (mm) |
18 |
| Indicator |
LEDs |
| Remote Tech |
Yes |
| Instrinsically Safe |
No |
| Water Detection |
No |
| Quick Disconnect Type |
M12 (Euro) |
|
|
|
 |
|
 |
|
