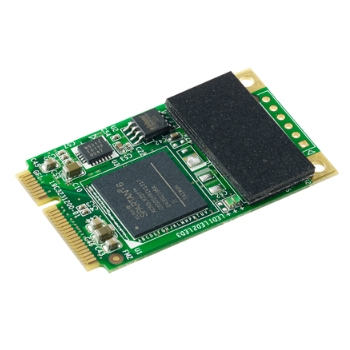

PCM-2300MR-AE - Advantech CIRCUIT MODULE, MR4A16B MRAM, 2MByte
The PCM-23 Series Family
The PCM-23 series is categorized as Industrial storage or memory modules
for the mPCIe interface which is able to extend connection to the
connector through iDoor technology with different functions. They are
all compatible with the PCI Express® Mini Card Specification Revision
1.2. including Isolated / Non-Isolated RS-232/422/485 communication
cards for automation control, Wi-Fi/3G/GPS/GSM/LTE wireless
communication models for data exchange during the management and machine
level of automation application, Zigbee module as an IoT terminal or
controller and PoE function for smart camera in detect inspection
application of production. This is a flexible design that enables
customers to customize their features which meet iDoor Technology.
MR4A16B, NV-RAM, MRAM, 2MByte, mPCIe
- Meets Advantech Standard iDoor Technology
- PCI Express® Mini Card Specification Revision 1.2 compliant
- Data always non-volatile for >20-years at temperature
- Read / Write Memory speed 6 MB/Sec
- Read / Write Memory speed 6 MB/Sec
- 2MB MRAM Storage
- I/O address automatically assigned by PCIe plug & play
- Supports Microsoft® Windows CE5/CE6 driver
- Supports Microsoft® Windows Enterprise Server 2008 / WES (Windows Embedded Standard)7/WES2009/Win7/WinXP 32 and 64bits
- Supports Linux Intel x86 hardware platform
- Supports Embedded Automation Computers UNO-2200/2300/2400 series
- Supports Embedded DIN-Rail Controller UNO-1200/1300/1400 series
- Supports Embedded BOX IPC UNO-3000 series
- Supports Embedded Automation Panel Computers TPC-xx82/xx72/xx80 series
 Download the PCM-2300MR-AE brochure in *.pdf format
| Environment |
Maximum magnetic field during read or standby |
8000 A/m |
| Maximum magnetic field immunity during write |
8000 A/m |
| Operating Humidity |
5-95% RH, non-condensing |
| Operating Temperature |
-20 ~ 60°C (-4 ~ 140°F) |
| Storage Temperature |
-40 ~ 85°C (-40 ~ 185°F) |
| General |
Bus Type |
PCI Express Mini Card Revision 1.2 |
| Certifications |
CE, FCC class A |
| Dimensions |
Module: 51 x 30 x 12.4mm (2" x 1.18" x 0.49"), I/O Plate: 81 x 19.4 x 41mm (3.19" x 0.76" x 1.61") |
| Power Consumption |
Typical : +3.3V @ 150mA |
| Memory |
Memory |
Everspin MR4A16B |
| Read/Write Speed |
6 MB/sec |
| Size |
2 MB |
| Software |
Driver |
Microsoft® Windows CE5/CE6 driver Microsoft® Windows Enterprise Server 2008 / WES (Windows Embedded Standard)7/WES2009/Win7/WinXP 32 and 64bits |
|
|
|
 |
|
 |
|
