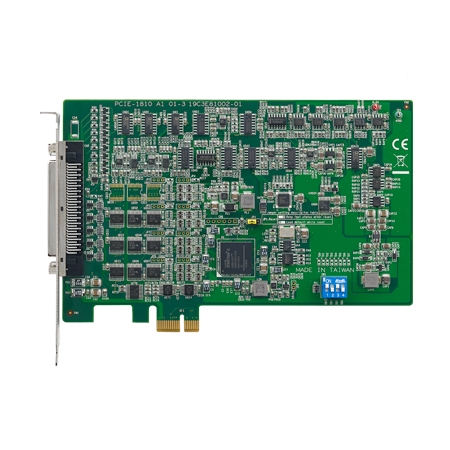

PCIE-1810-AE - Advantech CIRCUIT BOARD, 16ch, 12bit, 800kS/s PCIE Multifunction Card

PCIE-1810-AE

Price: $418.10

Manufacturer SKU: PCIE-1810-AE

Availability: Usually Ships in 3 to 5 Days
Part Number: PCIE-1810-AE

Qty:

Description

Technical Specs

PCIE-1810-AE - Advantech CIRCUIT BOARD, 16ch, 12bit, 800kS/s PCIE Multifunction Card
The PCIE-1810 is a multifunction PCI Express card that includes digital I/O, analog I/O and counter functions. It also features a 800KS/s 12-bit A/D converter and supports analog trigger for A/D data accquisition.

800 KS/s, 12-bit, 16-ch PCI Express Multifunction Card

16 analog inputs, up to 800 KS/s, 12-bit resolution
2 analog outputs, up to 500 KS/s, 12-bit resolution
Support for digital trigger and analog trigger (AI only)
24 programmable digital I/O lines Two 32-bit programmable counter/
Two 32-bit programmable counter/timers
Onboard FIFO memory ( 4 K samples)
Automatic channel/ gain scanning
Support for Microsoft Windows 7/XP

Download the PCIE-1810-AE brochure in *.pdf format

Analog Input	Channels		Single-ended 16-ch Differential 8-ch
	Resolution		12 bits
	Sample Rate		Single Channel 800 kS/s max. Multi-Channel 500 kS/s max.
	Note: The sampling rate for each channels will be affected by used channel number. For example, if 4 channels of PCIE-1810 are used, the sampling rate is 500k/4 = 125 kS/s per channel.
	Trigger Reference		Digital Trigger, Analog Trigger
	Trigger Mode		Start trigger, Delay to Start trigger Stop trigger, Delay to Stop trigger
	FIFO Size		4k samples
	Overvoltage Protection		30 Vp-p
	Input Impedance		1 GW
	Sampling Mode		Software and external clock
	Input Range		Software programmable
	Gain		0.5	1	2	4	8
	Bipolar		±10V	±5	±2.5	±1.25	±0.625
	Unipolar		N/A	0 ~ 10	0 ~ 5	0 ~ 2.5	0 ~ 1.25
	Absolute Accuracy (% of FSR)		0.1	0.1	0.2	0.2	0.4
Analog Output	Channels		2
	Resolution		12 bits
	Output Rate		500 kS/s max.
	Output Range		Software programmable
	Internal Reference	Unipolar	0 ~ 5 V 0 ~ 10 V
		Bipolar	-5 V ~ 5 V -10 V ~ 10 V
	External Reference		20 V/μs
	Slew Rate		5 mA
	Operation Mode		Static update, Waveform generation
	Accuracy		INLE: ± 1 LSB, DNLE: ± 1 LSB
Digital I/O	Channels		24
	Compatibility		5 V/TTL
	Input Voltage		Logic 0: 0.8 V max. Logic 1: 2.0 V min.
	Output Voltage		Logic 0: 0.8 V max. Logic 1: 2.0 V min.
	Output Capability		Sink: 15 mA @ 0.8 V Source: 15 mA @ 2.0 V
Counter	Channels		2
	Resolution		32 bits
	Compatibility		5 V/TTL
	Max. Input Frequency		10 MHz
	Pulse Generation		Yes
	Timebase Stability		50 ppm
General	Form Factor		PCI Express x 1
	Triggering		12 bits Analog x 2 / Digital x 2
	I/O Connector		68-pin SCSI female connector
	Dimensions (L x W)		167 x 100 mm
	Power Consumption		Typical: 3.3 V @ 488 mA 12 V @ 112 mA Max.: 3.3 V @ 2.25 A 12 V @ 390 mA
	Operating Temperaure		0 ~ 60°C (32 ~ 140°F) (refer to IEC 60068-2-1, 2)
	Storage Temperature		-40 ~ 70°C (-40 ~ 158°F)
	Storage Humidity		5 ~ 95% RH non-condensing (refer to IEC 60068-2-3)
