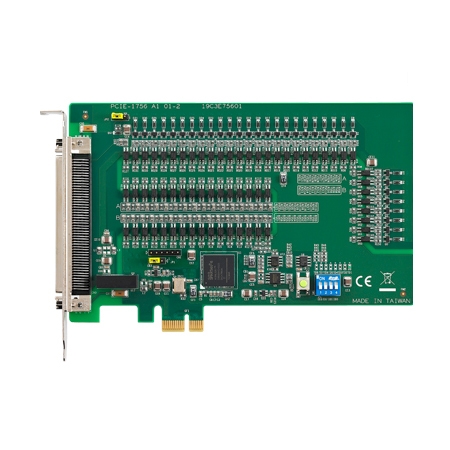

PCIE-1756-BE - Advantech CIRCUIT BOARD, 64-ch Isolated Digital I/O PCI Express Card

PCIE-1756-BE - Advantech
PCIE-1756-AE

Price: $258.30
Manufacturer SKU: PCIE-1756-BE


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: PCIE-1756-BE
Qty:

Description Technical Specs

PCIE-1756-BE - Advantech CIRCUIT BOARD, 64-ch Isolated Digital I/O PCI Express Card

The PCIE-1752, PCIE-1754 and PCIE-1756 Family
The Advantech PCIE-1752, PCIE-1754 and PCIE-1756 series products offer 64 isolated digital input and output channels with 2,500 VDC isolation protection. They feature a wide input range (10 ~ 30 VDC), wide output range (5 ~ 40 VDC) and high sink current (500mA max./channel) can make PCIE-1752/1754/1756 series products easily used in industrial automation control systems. With the help of the latest Advantech driver - DAQNavi, users can perform the configuration and setting easily and efficiently in the programming.

64-ch Isolated Digital I/O PCI Express Card
  • Wide output range (5 ~ 40 VDC)
  • High sink current on isolated output channels (500mA max./ch)
  • 2,000 VDC ESD protection
  • High-voltage isolation (2,500 VDC)
  • Interrupt handling capability
  • Wide input range (10 ~ 30 VDC)
  • Either +/- voltage input for DI by group
  • High over-voltage protection (70 VDC)
  • High-voltage isolation (2,500 VDC)
  • Output status read-back
  • Keeps the output settings and values after system hot reset
  • Channel-freeze function
pdfDownload the PCIE-1756-BE brochure in *.pdf format
