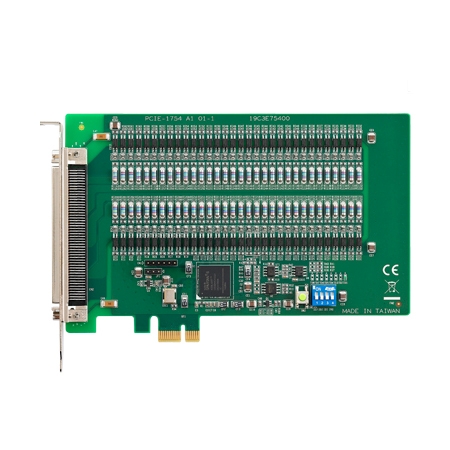

PCIE-1754-AE - Advantech CIRCUIT BOARD, 64-ch Isolated Digital Input PCI Express Card

PCIE-1754-AE

Price: $259.40

Manufacturer SKU: PCIE-1754-AE

Availability: Usually Ships in 3 to 5 Days
Part Number: PCIE-1754-AE

Qty:

Description

Technical Specs

PCIE-1754-AE - Advantech CIRCUIT BOARD, 64-ch Isolated Digital Input PCI Express Card

The PCIE-1752, PCIE-1754 and PCIE-1756 Family
The Advantech PCIE-1752, PCIE-1754 and PCIE-1756 series products offer 64 isolated digital input and output channels with 2,500 VDC isolation protection. They feature a wide input range (10 ~ 30 VDC), wide output range (5 ~ 40 VDC) and high sink current (500mA max./channel) can make PCIE-1752/1754/1756 series products easily used in industrial automation control systems. With the help of the latest Advantech driver - DAQNavi, users can perform the configuration and setting easily and efficiently in the programming.

64-ch Isolated Digital Input PCI Express Card

Wide input range (10 ~ 30 VDC)
Either +/- voltage input for DI by group
High over-voltage protection (70 VDC)
High-voltage isolation (2,500 VDC)
Output status read-back
Keeps the output settings and values after system hot reset
Channel-freeze function

Download the PCIE-1754-AE brochure in *.pdf format
