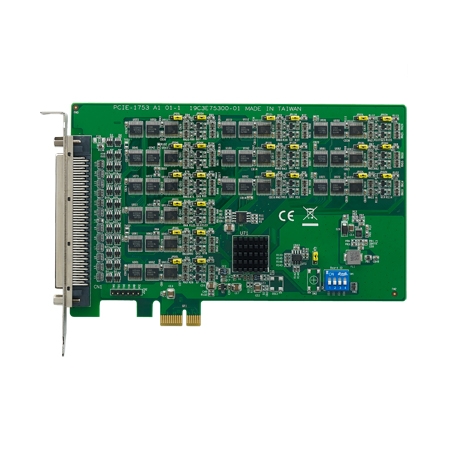

PCIE-1753-B - Advantech CIRCUIT BOARD, 96ch TTL Digital I/O Card

PCIE-1753-B - Advantech
PCIE-1753-B

Price: $275.00
Manufacturer SKU: PCIE-1753-B


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: PCIE-1753-B
Qty:

Description Technical Specs

PCIE-1753-B - Advantech CIRCUIT BOARD, 96ch TTL Digital I/O Card
The PCIE-1753 is a 96-bit digital I/O card for the PCI bus. The card emulates mode 0 of the 8255 PPI chip, but the buffered circuits offer higher driving capability than the 8255. The 96 I/O lines are divided into twelve 8-bit I/O ports. Users can configure each port as input or output via software.

96-ch Digital I/O PCI Express Card
  • Fully compatible with PCI-1753
  • Up to 96 TTL digital I/O lines
  • Emulates mode 0 of 8255 PPI
  • Buffered circuits for higher driving capacity than the 8255
  • Interrupt handling capability
  • Output status read-back
  • Supports input data pattern match and change of state functions
  • Keep I/O settings and output status after hot reset
  • Supports both dry and wet contact
  • High-density 100-pin SCSI connector
pdfDownload the PCIE-1753-B brochure in *.pdf format
