PCI-1706U-AE - Advantech CIRCUIT BOARD, 250k, 16bit Simultaneous 8-CH PCI Card with AO

PCI-1706U-AE

Price: $883.00

Manufacturer SKU: PCI-1706U-AE

Availability: Usually Ships in 3 to 5 Days
Part Number: PCI-1706U-AE

Qty:

Description

Technical Specs

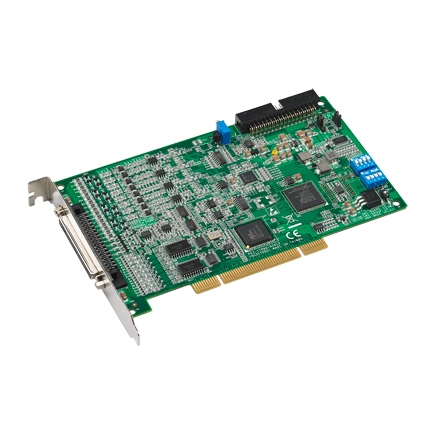

PCI-1706U-AE - Advantech CIRCUIT BOARD, 250k, 16bit Simultaneous 8-CH PCI Card with AO
PCI-1706U is an advanced high-performance multifunction card based on the Universal PCI Bus. With a large FIFO of 8K Sample, the maximum sampling rate of PCI-1706U is up to 250 kS/s with 8 A/D converters simultaneously sampling on each channel. If more than 8 analog input channels are required, multiple cards can be synchronized through the Device-to-Device Bus to support more AI channels simultaneously sampling. The PCI-1706U has two 12-bit D/A output channels, 16 digital input/output channels, and two 32-bit Time/counter channels so that it can provide specific functions for different application requirements.

8 differential analog inputs
8 A/D converters simultaneously sampling
16-bit A/D converter, with up to 250kHz sampling rate for each channel
Programmable gain
Onboard FIFO memory up to 8K Sample
Multiple A/D triggering modes
Programmable pacer/counter
BoardID™ switch
Universal PCI Bus (supports 3.3V or 5V PCI bus signals)

Download the PCI-1706U-AE brochure in *.pdf format
