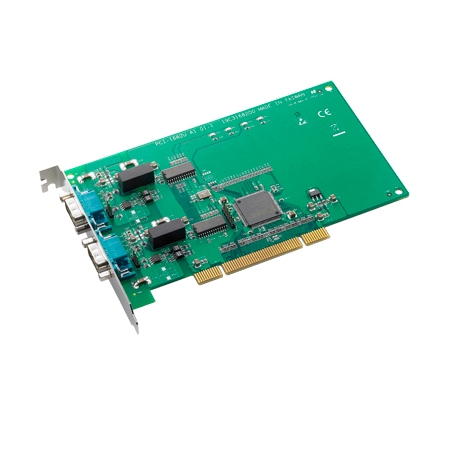

PCI-1682U-AE - Advantech CIRCUIT BOARD, 2-port CAN-bus Uni PCI COMM Card w/CANOpen
PCI-1682U is a special purpose communication card that offers the
connectivity of the Controller Area Network (CAN) to your PC. With its
built-in CAN controllers, the PCI-1682U provides bus arbitration and
error detection with an automatic transmission repeat function. This
drastically reduces the chance of data loss and ensures system
reliability. The onboard CAN controllers are located at different
positions in the memory, and you can run both CAN controllers
independently at the same time. Besides, PCI-1682U has a universal PCI
connector, which is compatible with both new 3.3 V signaling systems and
traditional 5 V signaling systems. With high-compatibility, the
PCI-1682U can be used in diverse systems.
Controller Area Network (CAN)
The CAN is a serial bus system especially suitable for networking
“intelligent” I/O devices as well as sensors and actuators within a
machine or plant. Characterized by its multi-master protocol, real-time
capability, error correction, high noise immunity, and the existence of
many different silicon components, the CAN serial bus system, originally
developed by Bosch™ for use in automobiles, is increasingly being used
in industrial automation.
Direct Memory Mapping Enables Direct Access to the CAN Controller
The PCI-1682U is assigned a memory address. This is the simplest method
of integrating a board in a PC and provides the quickest access since
the board is treated by the PC as being standard RAM.
Advantech CANopen Protocol Library
Advantech CANopen Protocol Library (acoapi) provides a C application
programming interface (API) for accessing the CANopen network protocol
stack of nodes. It is easy to use, configure, start and monitor the
CANopen devices careless CAN bus, developer just focused on CANopen
application functionality.
2-port CAN-bus Universal PCI Communication Card with CANopen Support
 Download the PCI-1682U-AE brochure in *.pdf format
|
Communications
|
CAN
|
V
|
|
Display
|
Ports
|
2
|
|
Network
|
Cable Connector Type
|
Optional
|
|
|
|
 |
|
 |
|
