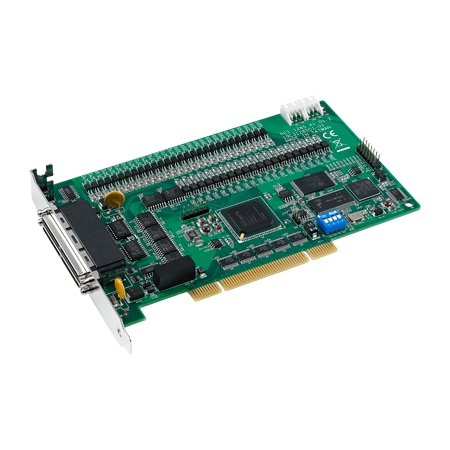

PCI-1285E-AE - Advantech CIRCUIT BOARD, Economic 8-Axis DSP-Based SoftMotion Controller
The PCI-1245E/1285E Family
PCI-1245E/1285E is a 4/8-axis economic universal PCI (supporting both 3.3 V and 5 V signal slot) stepping/pulse-type servo motor control card designed for entry-level applications which need to control linear interpolation, electronic gear, continuous contouring (circular trajectories and auto blending are excluded). PCI-1245E/1285E utilizes the high-performance DSP and FPGA to calculate the motion trajectories, synchronization timing control for multiple axes and input/output handling to offer functionality, such as 2~8-axis linear interpolation, E-Gear (only for PCI-1245E), T/S-curve acceleration/deceleration rate, speed override, 16 home modes and so on. In addition, Advantech supplies a Common Motion API library, graphical utility and user-friendly examples to decrease programming load, helping users complete configuration and diagnosis easily.
- Encoder input is 10 MHz for 4xAB mode, 2.5 MHz for CW/CCW mode
- Pulse output up to 5 Mpps
- Memory buffer for trajectory planning (circular trajectory and auto blending are not supported)
- Supports E-Gear (only for PCI-1245E)
- Hardware emergency input
- Watchdog timer
- Position latch via ORG & index signal
- Programmable interrupt
- RDY/LTC-dedicated input channels & SVON/CMP/CAM-DO/ERC-dedicated output channels are switchable for general input and output purposes
 Download the PCI-1285E-AE brochure in *.pdf format
| Pulse Type Motion Control |
General Digital I/O |
32-ch DI, 32-ch DO |
| Machine Interfaces |
LMT+, LMT-, ORG |
| Max. Output Speed |
5 Mbps |
| Number of Axis |
8 |
| Position Counters |
Range of command and actual position |
| Pulse Output Type |
Pulse/direction (1-pulse, 1-direction type) or CW/CCW (2-pulse type) |
| Servo Driver Interfaces |
ALM, INP |
| Step Count Range |
±2, 147, 483, 646 |
| Velocity Profiles |
T-Curve, S-Curve |
| General |
Connector |
2 x 100-pin mini-SCSI female connector |
| Power Consumption |
Typical: 5 V @ 530 mA 3.3 V @ 160 mA; Max.: 5 V @ 500 mA 3.3 V @ 1 A |
| Temperature (Operating) |
0 ~ 60°C (32 ~ 140°F) |
| Humidity |
5 ~ 95% RH, non-condensing (IEC 68-2-3) |
| Bus |
Universal PCI V2.2 |
| Temperature (Storage) |
-20 ~ 85°C (-4 ~ 185°F) |
| Dimensions |
175 x 100 (6.9" x 3.9") |
| Encoder Interface |
Isolation Protection |
2,500 VDC |
| Input Range |
5 ~ 10 V |
| Input Type |
Quadrature (A/B phase) or up/down |
| Max. Input Frequency |
10 MHz under 4xAB mode |
| Pulse Type Motion Control |
Motor Driver Support |
Pulse-type servo/stepping |
| Interpolation |
2 to 8-axis linear |
|
|
|
 |
|
 |
|
|
|
