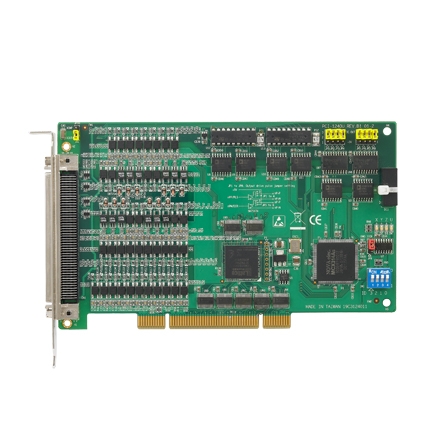

PCI-1240U-B2E - Advantech CIRCUIT BOARD, 4-Axis Stepping/Pules-type Servo Motor Card
Advantech introduces the PCI-1240U 4-axis stepping/pulse-type servo motor control card designed for general-purpose extreme motion applications. The PCI-1240U is a high-speed 4-axis motion control card for the PCI bus that simplifies stepping and pulse-type servo motor control, giving you added performance from your motors. The card’s intelligent NOVA ® MCX314-motion ASIC builds in a variety of motion control functions, such as 2/3-axis linear interpolation, 2- axis circular interpolation, T/S-curve acceleration/deceleration rate and more. In addition, the PCI-1240U performs these motion control functions without processor loading during driving. For advanced applications, we supply Windows DLL drivers and user-friendly examples to decrease your programming load. Moreover, through a free bundled PCI-1240U motion utility, you can complete configuration and diagnosis easily.
- Independent 4-axis motion control
- Hand wheel and jog function
- 2/3-axis linear interpolation function
- 2-axis circular interpolation function
- Continuous interpolation function
- Programmable T/S-curve acceleration/deceleration rate
- Up to 4 MPPS output for each axis
- Two pulse output types: CW/CCW or Pulse/Direction
- Up to 1 MHz encoder input for each axis
- Two encoder pulse input types: A/B phase or Up/Down
- Constant speed control
- Position management and software limit switch function
- BoardID™ switch
 Download the PCI-1240U-B2E brochure in *.pdf format
| General |
Power Consumption |
Typical: 5 V @ 850 mA; Max.: 5 V @ 1 A |
| Connector |
1 x 100-pin SCSI Female Connector |
| Temperature (Operating) |
0 ~ 60°C (32 ~ 140°F) |
| Humidity |
5 ~ 95% RH, non-condensing (IEC 68-2-3) |
| Temperature (Storage) |
-20 ~ 85°C (-4 ~ 185°F) |
| Bus |
Universal PCI V2.2 |
| Dimensions |
175 x 100 (6.9" x 3.9") |
| Encoder Interface |
Isolation Protection |
2,500 VDC |
| Input Type |
Quadrature (A/B phase) or up/down |
| Input Range |
5~25 V |
| Max. Input Frequency |
1 MHz |
| Axes |
Linear Interpolation |
V |
2-axis Circle
Interpolation |
V |
| Number of Axes |
4 |
| Advanced Function |
Servo On Output Channels |
4 |
| Advanced Functions |
General Purpose
DO Channels |
16 |
General Purpose
DI Channels |
12 |
| Pulse Type Motion Control |
Motor Driver Support |
Servo/stepping |
| Interpolation |
2-axis linear, 3-axis linear, 2-axis circular |
|
|
|
 |
|
 |
|
|
|
