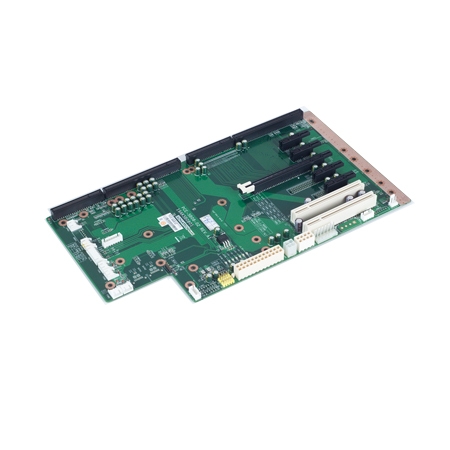

PCE-5B08-02A1E - Advantech PCE-5B08-02A1E 7 Slots PICMG1.3BP, 1 CPU Card, 1 PCIe x16, 4 PCIe x1, 2 PCI slots for PCE-5120, PCE-5124 and PCE-7214. Compatible with 8 slot chassis IPC-6608 and IPC-6908

PCE-5B08-02A1E - Advantech
PCE-5B08-02A1E

Price: $116.00
Manufacturer SKU: PCE-5B08-02A1E


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: PCE-5B08-02A1E
Qty:

Description

PCE-5B08-02A1E - Advantech 7 Slots PICMG1.3BP, 1 CPU Card, 1 PCIe x16, 4 PCIe x1, 2 PCI slots for PCE-5120, PCE-5124 and PCE-7214. Compatible with 8 slot chassis IPC-6608 and IPC-6908
8-slot BP for 8-slot chassis
  • 8-slot BP for 8-slot chassis
  • Segments: 1
  • One CPU card slot
  • PCIe slot: One x16; Four x1
  • PCI-X slot: N/A
  • PCI slot: Two 32/33
  • Compatible with IPC chassis: IPC-6608 and IPC-6908
pdfDownload the PCE-5B08-02A1E brochure in *.pdf format
