PCE-5B07-04A1E - Advantech PCE-5B07-04A1E 7 Slots PICMG1.3BP, 1 CPU Card, 1 PCIe x16, 1 PCIe x4, 4 PCI slots for PCE-5120, PCE-5124 and PCE-7214. Compatible with 8 slot chassis IPC-6608 and IPC-6908

PCE-5B07-04A1E - Advantech
PCE-5B07-04A1E

Price: $116.00
Manufacturer SKU: PCE-5B07-04A1E


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: PCE-5B07-04A1E
Qty:

Description

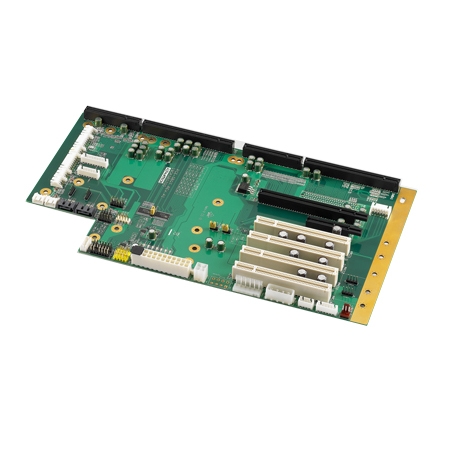

PCE-5B07-04A1E - Advantech 7 Slots PICMG1.3BP, 1 CPU Card, 1 PCIe x16, 1 PCIe x4, 4 PCI slots for PCE-5120, PCE-5124 and PCE-7214. Compatible with 8 slot chassis IPC-6608 and IPC-6908
Complying with System Host Board (SHB Express; also called PICMG 1.3) standards, these SHBs feature the latest PCI Express technology, offering scalable I/O bandwidth of more than 10 GB/s. They maintain compatibility with PCIe, PCI-X, PCI and ISA, and allow customers to leverage commercial I/O cards. Advantech's SHBs empower system designers to create a new generation of servers, workstations and industrial platforms.

7-slot BP for 8-slot chassis
  • 7-slot BP for 8-slot chassis
  • Segments: 1
  • One CPU card slot
  • PCIe slot: One x16; One x4
  • PCI-X slot: N/A
  • PCI slot: Four 32/33
  • Compatible with IPC chassis: IPC-6608 and IPC-6908
pdfDownload the PCE-5B07-04A1E brochure in *.pdf format
