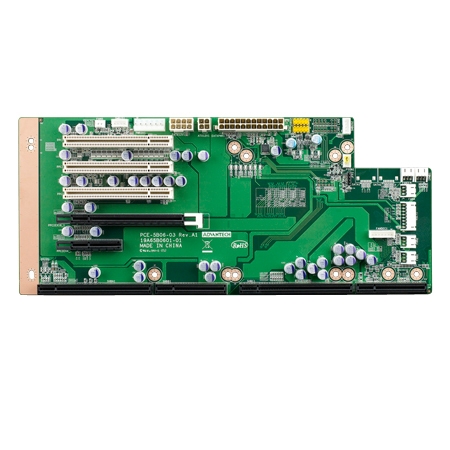

PCE-5B06-03A1E - Advantech PCE-5B06-03A1E 6 slot PICMG1.3 BP,PCIex16x1,PCIex4x1,PCIx3,RoHS Compatible with IPC-6606

PCE-5B06-03A1E - Advantech
PCE-5B06-03A1E

Price: $110.00
Manufacturer SKU: PCE-5B06-03A1E


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: PCE-5B06-03A1E
Qty:

Description

PCE-5B06-03A1E - Advantech 6 slot PICMG1.3 BP,PCIex16x1,PCIex4x1,PCIx3,RoHS Compatible with IPC-6606
Complying with System Host Board (SHB Express; also called PICMG 1.3) standards, these SHBs feature the latest PCI Express technology, offering scalable I/O bandwidth of more than 10 GB/s and PCIe/PCI compatiblility, allowing customers to leverage commercial I/O cards. Advantech's SHBs empower system designers to create a new generation of servers, workstations and industrial application platforms.

6-slot BP for 6-slot chassis
  • 6-slot BP for 6-slot chassis
  • Segments: 1
  • One CPU card slot
  • PCIe slot: One x16 and one x4
  • PCI-X slot: N/A
  • PCI slot: 3
  • Compatible with IPC chassis: IPC-6606
pdfDownload the PCE-5B06-03A1E brochure in *.pdf format
