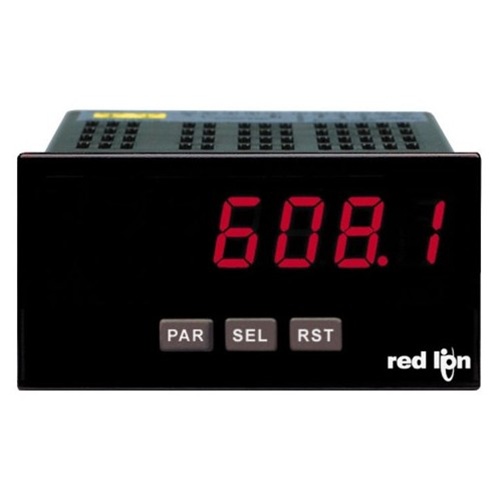

PAXLPT00 - Red Lion Controls Pax Lite Meters - Process Time Meter

PAXLPT00 - Red Lion Controls
PAXLPT00

Price: $337.00
Manufacturer SKU: PAXLPT00



Availability: Normally Stocked
Part Number: PAXLPT00
Qty:

Description

The PAX Lite Process Time Meter, Model PAXLPT00, displays a value representing the time between a beginning and end point of a process, such as a conveyor oven.

The PAXLPT00's display will update inversely in relation to the input signal frequency. As input frequency increases (representing speed), the PAXLPT00 time display will decrease indicating a reduction in the duration of process time. For example, the bake time through an oven will decrease the faster the conveyor runs.

The display can be programmed for two operating modes. Operating in the 6 digit mode, the PAXLPT00 can readout in any whole value, such as seconds, minutes, or hours. This mode also provides capability for decimal points. The 5 digit mode functions as a chronometer, which has a maximum display value of 999-59. This formats the display to allow the meter to readout in hours and minutes, minutes and seconds, etc.

The PAX Lite Process Time Indicator also has a feature called "moving window average". This allows one time disturbances, or irregularly spaced items to be averaged over eight inputs, thus keeping display fluctuations to a minimum while still updating the display on every pulse. This feature can be enabled or disabled by a rear DIP switch.

The PAXLPT00 can accept many different types of sensors including magnetic pickups, logic sensors, and NPN open collector sensors, as well as switch contact closure sensors.

The meter has been specifically designed for harsh industrial environments. With a NEMA 4X/IP65 sealed bezel and extensive testing to meet CE requirements, the meter provides a tough yet reliable application solution.
