ORM24D22 - SSAC Timer Delay-on-Make 24/28VDC Relay DPDT Adjustable 0.5 30s Open Board

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > ORM Series >

ORM24D22

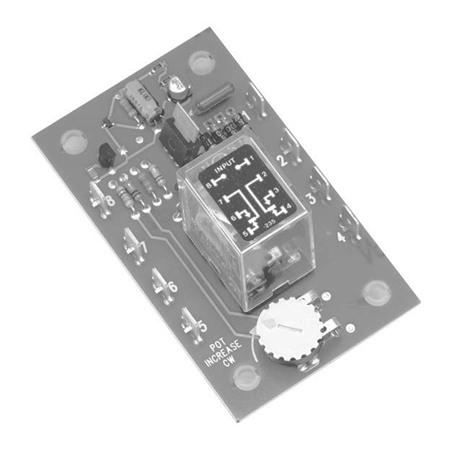

This is a family photo and may not be an accurate representation of the product.

Price: $57.65

Returnable: NOT RETURNABLE
Manufacturer SKU: ORM24D22
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: ORM24D22

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

ORM24D22 - SSAC Timer Delay-on-Make 24/28VDC Relay DPDT Adjustable 0.5 30s Open Board

The ORM Series Family

The ORM Series features open PC board construction for reduced cost. It has isolated, 10A, DPDT relay contacts and all connections are 0.25 in (6.35 mm) male quick connect terminals. The time delay may be ordered as factory fixed, onboard knob, or external adjustment. Time delays from 0.05 - 300 seconds.

Operation (Delay-on-Make):
Upon application of input voltage, the time delay begins. The output is de-energized before and during the time delay. At the end of the time delay, the output energizes and remains energized until voltage is removed. Reset: Removing input voltage resets the time delay and output.

Features:

Time delays from 0.05s - 300s in 5 ranges or fixed

Low cost open PCB construction

10A, DPDT output contacts

±2% repeat accuracy

±10% factory calibration

Factory fixed, onboard or external adjust

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-12

P/N: P1004-12-X

Female quick connect: P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor:P/N: P1015-18

Versa-knob: P/N: P0700-7

Download the The SSAC Product Line catalog in *.pdf format
Download the The ORM Series Datasheet datasheet in *.pdf format
