DC Motors - Washguard Duty LEESON Washguard Duty DC motors are designed for extended life in applications requiring regular washdown or otherwise wet environments. These Epoxy painted motors retard the entrance of water during cleaning operations and their drain holes release and water that does enter the motor. The interior of the motor is also coated, which offers extra protection to the motor’s interior surfaces to prevent corrosion.
Features
High Quality 303 Stainless Steel Shafts
Spring loaded contact seals and patented “V” ring Forsheda seal
Interior surfaces are protected by an enamel and polyester coating
External surfaces painted with USDA approved Epoxy paint
Stainless steel fan guards and conduit box cover
Double sealed, over-sized bearings are used
Available Ratings: SCR & Low Voltage C-Face With Removable Base – 90 & 180 V – 1750 RPM – ¼ - 1.5 HP SUB-FHP – 90 V – TENV – Square Flange or C-Face – 1/8, 1/6 (1750 RPM), & ¼ HP (2500 RPM) SUB-FHP – 90 V – TENV – Square Flange or C-Face – 1/8, 1/6 (1750 RPM), & ¼ HP (2500 RPM) IEC Frame – 180 Volts – TENV IP55 – B-5 Flange with Removable B3 Base – ½HP (.37 kW) & 3/4HP (.55 kW)

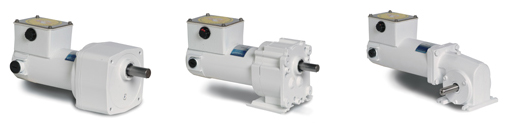

IP55 – SUB-FHP Washguard Gearmotors DC Permanent Magnet gearmotors rated for continuous duty. Designed for use with fullwave non-filtered SCR controls or battery supplied low voltage for adjustable speed applications requiring constant torque throughout the speed range.
Mechanical Specifications
Shafts coated with Mirolon 3300 fortified Teflon for corrosion resistance
Frames, endshields, armature and interior components protected to resist corrosion
Cast Conduit Box with threaded conduit holes
Stainless Steel hardware throughout
Output shafts have needle bearings for high load capacities
