LCSC10T12 - SSAC Current Transformer for use with DCSA Series

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Current Sensors & Monitors > DCSA Series >

LCSC10T12

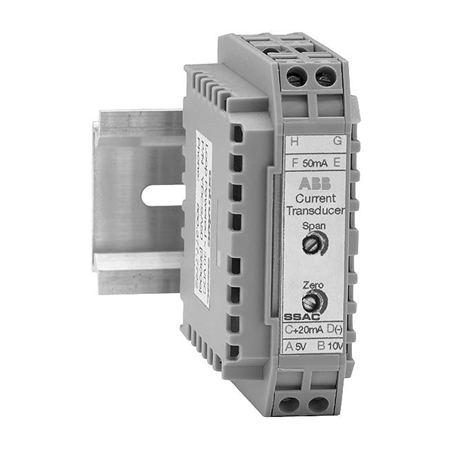

This is a family photo and may not be an accurate representation of the product.

Price: $61.08

Manufacturer SKU: LCSC10T12

Availability: Usually Ships in 3 to 5 Days
Part Number: LCSC10T12

Qty:

Description

LCSC10T12 - SSAC Current Transformer for use with DCSA Series

The DCSA Series Family

The DCSA Series is a loop-powered, linear output current transducer that provides an output that is directly proportional to the RMS AC current passing through the LCSC10T12 sensor. The DCSA provides either an analog current or voltage: 4 - 20 mA, 1 to 5VDC, or 2 to 10VDC. Each unit is factory calibrated for monitoring (with the LCSC10T12 connected) in one of four ranges; 0 - 5, 0 - 10, 0 - 20, or 0 - 50A. Zero and span adjustments allow field calibration if needed. The DCSA mounts on both DIN 1 and DIN 3 rails.

Operation:
The DCSA varies the effective resistance of its output in direct proportion to the current flowing in the conductor monitored by the LCSC10T12. Connecting the power supply to terminals C & D provides a 4 to 20mA DC current. Connect the power supply to terminals C & A to get 1 to 5VDC at terminal D. Connect the power supply to terminals C & B to get 2 to 10VDC at terminal D.

Features:

Mounts on DIN 1 or DIN 3 rail
0 - 50A in 4 ranges using LCSC10T12 sensor
Loop powered from 10 to 30VDC
Linear output from 4 - 20mA, 1 - 10VD
Zero & span adjustments
Separate sensor & control unit

Auxiliary Products:

Current sensor: P/N: LCSC10T12

Download the The SSAC Product Line catalog in *.pdf format
pdf

Download the The DCSA Series Datasheet datasheet in *.pdf format
