KSDS420 - SSAC Timer Single Shot 120VAC 1A Ext Adjustable 0.1 10s 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > KSDS Series >

KSDS420

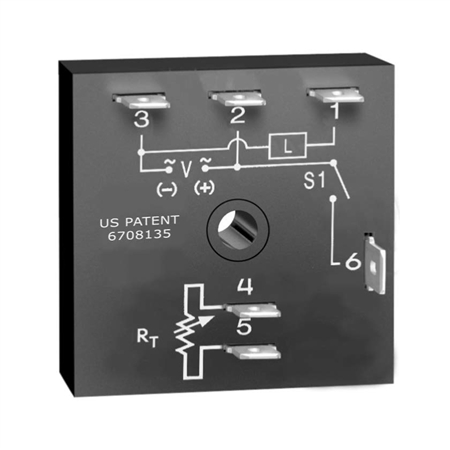

This is a family photo and may not be an accurate representation of the product.

Price: $48.47

Returnable: NOT RETURNABLE
Manufacturer SKU: KSDS420
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: KSDS420

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

KSDS420 - SSAC Timer Single Shot 120VAC 1A Ext Adjustable 0.1 10s 2x2

The KSDS Series Family

The KSDS Series is ideal for applications that require momentary start interval timing including dispensing, exposure timing, or pulse shaping. This series is available for both AC and DC voltages. This series is designed for general purpose commercial and industrial applications where a small, cost effective, reliable solid-state timer is required. The factory calibration for fixed time delays is within 5% of the target time delay. The repeat accuracy, under stable conditions, is 0.5% of the selected time delay. Time delays of 0.1 seconds to 1000 minutes are available in 6 ranges. The output is rated 1A steady and 10A inrush. The modules are totally solid state and encapsulated to protect the electronic circuitry.

Operation (Single Shot):
Input voltage must be applied before and during timing. Upon momentary or maintained closure of the initiate switch (leading edge triggered), the output energizes for a measured interval of time. At the end of the delay, the output de-energizes. Opening or reclosing the initiate switch during timing has no affect on the time delay. The output will not energize if the initiate switch is closed when input voltage is applied.
Reset: Reset occurs when the time delay is complete and the initiate switch is opened. Loss of input voltage resets the time delay and output.

Features:

Adjustable 0.1s - 1000m in 6 ranges

±0.5% repeat accuracy

± 5% factory calibration

12 to 230V in 5 ranges

1A, solid-state output

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-95

P/N: P1004-95-X

Mounting bracket: P/N: P1023-6

Female quick connect: P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor: P/N: P1015-18

Versa-knob: P/N: P0700-7

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20

Download the The SSAC Product Line catalog in *.pdf format
Download the The KSDS Series Datasheet datasheet in *.pdf format
