KRPSD25S - SSAC Timer Single Shot 12 48VDC Relay Adjustable 1 100m 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > ProgramaCube > KRPS Series >

KRPSD25S

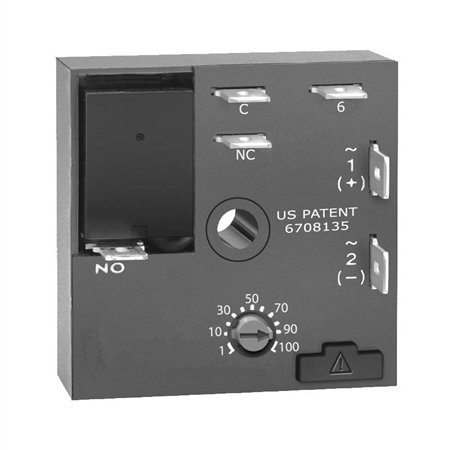

This is a family photo and may not be an accurate representation of the product.

Price: $70.26

Returnable: NOT RETURNABLE
Manufacturer SKU: KRPSD25S
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: KRPSD25S

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

KRPSD25S - SSAC Timer Single Shot 12 48VDC Relay Adjustable 1 100m 2x2

The KRPS Series Family

The KRPS Series is a factory programmed time delay relay available with 1 of 15 functions and measures only 2 inches square. The KRPS offers a wide range of fixed, onboard, or externally adjustable time delays. The output relay contacts offer a full 10A rating with complete isolation. Its microcontroller timing circuit provides excellent repeat accuracy and stability. Encapsulation protects against shock, vibration, and humidity. The KRPS Series is a cost effective approach for OEM applications that require small size, isolation, accuracy, and long life. Special time ranges and functions are available.

Features:

Choose 1 of 15 standard functions

Special time ranges & functions available

Factory programmed

Microcontroller circuitry, ±0.5% repeat accuracy

Isolated, 10A, SPDT output contacts

Input voltage from 12 to 240V in 2 ranges

Delays from 0.1s - 1000h in 9 ranges

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-95

P/N: P1004-95-X

Versa-knob: P/N: P0700-7

Female quick connect: P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor: P/N: P1015-18

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20

Download the The SSAC Product Line catalog in *.pdf format
Download the The KRPS Series Datasheet datasheet in *.pdf format
