KRDS420 - SSAC Timer Single Shot 120VAC Relay Adjustable 0.1 10s 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > KRDS Series >

KRDS420

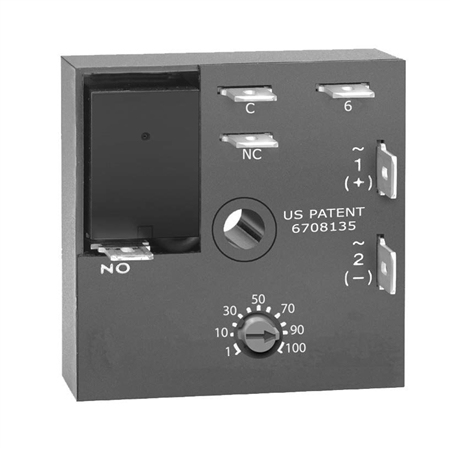

This is a family photo and may not be an accurate representation of the product.

Price: $64.23

Returnable: NOT RETURNABLE
Manufacturer SKU: KRDS420
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: KRDS420

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

KRDS420 - SSAC Timer Single Shot 120VAC Relay Adjustable 0.1 10s 2x2

The KRDS Series Family

The KRDS Series is a compact time delay relay measuring only 2 in. (50.8 mm) square. Its microcontroller timing circuit provides excellent repeat accuracy and stability. Encapsulation protects against shock, vibration, and humidity. The KRDS Series is a cost effective approach for OEM applications that require small size, isolation, reliability, and long life.

Operation (Single Shot):
Input voltage must be applied before and during timing. Upon momentary or maintained closure of the initiate switch, the output relay energizes for a measured interval of time. At the end of the delay, the output de-energizes. Opening or reclosing the initiate switch during timing has no affect on the time delay. The output will energize if the initiate switch is closed when input voltage is applied. Reset: Reset occurs when the time delay is complete and the initiate switch is opened. Loss of input voltage resets the time delay and output.

Features:

Compact time delay relay

±0.5% repeat accuracy

Isolated, 10A, SPDT output contacts

Factory fixed, onboard or external adjust

Delays from 0.1s - 1000m in 6 ranges

±5% factory calibration

Input voltages from 12 to 230V in 5 options

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-95

P/N: P1004-95-X

Mounting bracket: P/N: P1023-6

Female quick connect:

P/N: P1015-13 (AWG 10/12)

P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor: P/N: P1015-18

Versa-knob: P/N: P0700-7

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20
