KLNR250 - Littelfuse KLNR RK 1 F A

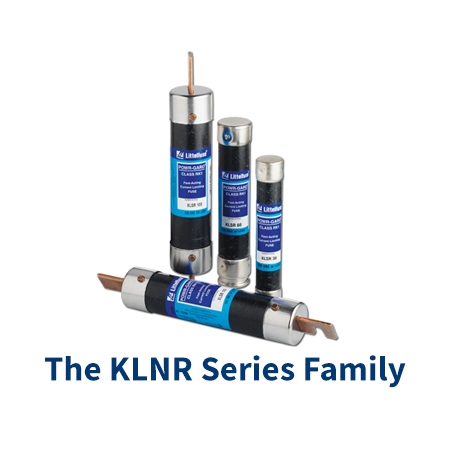

The KLNR Series Family
KLNR/KLSR series RK1 fast-acting fuses were the earliest type of current-limiting fuse developed. Their single-element, silver link design enables them to provide fast-acting overload and short-circuit protection. When used to protect inductive loads such as motors, solenoids, and transformers, KLNR/KLSR series fuses must be greatly oversized to prevent opening the fuses on harmless inrush currents. In such applications, KLNR/KLSR series fuses may only provide short-circuit protection.
We recommend using POWR-PRO™ LLNRK/LLSRK series RK1, dual-element, time-delay fuses in all new applications requiring the current-limiting ability of UL Class RK1 fast-acting fuses, or in existing applications where fast-acting RK1 or RK5 fuses have been opening on harmless system surges such as motor starting currents.
Applications:
- Resistance heaters
- Lighting circuits
- Non-inductive loads
- Molded case circuit breaker load centers and panelboards have increased interrupting ratings when "series rated" with Littelfuse KLNR/KLSR Class RK1 fast-acting fuses. Refer to panelboard manufacturer's literature for UL Listed combination of fuses and panelboards. Series ratings up to 200,000 amperes are available.
Safety:
- 200,000 A.I.R. - Reliable interruption of all overcurrents up to 200,000 amperes.
- Extremely current limiting - Stops damaging short-circuit current faster than any mechanical protective device.
- Fast-acting - Provides fast-acting protection to equipment such as variable speed drives, rectifiers and other equipment containing surge-sensitive components.
- Longer Equipment Life:
- Current-limiting design reduces damage to equipment caused by heating and magnetic effects of short-circuit currents.
Economical:
- Extremely current-limiting - often permits use of readily available, less costly equipment.
- Used as input or output fast-acting fuses for surge-sensitive components, such as variable speed drives and rectifiers, fast acting KLNR/KLSR fuses may prevent opening of expensive semiconductor fuses protecting individual components.
Easy to Use:
- 200,000 A.I.R. rating minimizes need for short circuit calculations.
- Dimensions:
- Refer to FLNR for KLNR dimensions and FLSR for KLSR dimensions.
 Download the The KLNR Series catalog in *.pdf format
| Ampere Rating (A) |
250 |
| VAC (V) |
250 |
| VDC (V) |
125 |
| Interrupting Rating |
20000A@125VDC |
| Opening |
Slo-Blo/Time Lag (T)/Time Delay |
| Package Size |
Knife-Blade |
|
|
|
 |
|
 |
|
