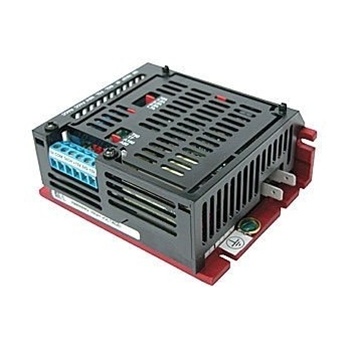

KBMG-21D KB Electronics 115/230 VAC, thru 1/6 HP, 90/180 VDC ARM (8830)

KBMG-21D KB Electronics 115/230 VAC
KBMG-21D

Price: $156.10
Manufacturer SKU: KBMG-21D
Manufacturer ID: 8830

Quantity in Stock:18

Free Shipping
Availability: Normally Stocked
Part Number: KBMG-21D
Qty:

Description

KBMG-21D KB Electronics 115/230 VAC, thru 1/6 HP, 90/180 VDC ARM (8830)

Plug-in Horsepower Resistor Not Required The control uses a jumper for current selection
Plug-in Line Fuse External No provisions for mounting the fuse on the control, but it is recommended that the customer provide an external means of fusing the control. Plug-in Line Fuses purchased separately
Plug-in Armature Fuse External No provisions for mounting the fuse on the control, but it is recommended that the customer provide an external means of fusing the control. Plug-in Armature Fuses purchased separately


pdf Consult the Plug-in Horsepower Resistor and Plug-in Fuse Selection Charts for proper sizing based on motor horsepower and amperage.
KBMG21D
Additional Product Information

One KB Electronics model covers 90VDC (1/10 - 1 HP) @ 115VAC And 180VDC (1/5 - 2 HP) @ 230VAC. Operation modes of Speed or Torque. Capable of controlling DC PM or Shunt motors in a bidirectional mode. Over speed protection circuits and KB's Auto Inhibit function (to provide smooth starting) are just a few advanced features included in this drive. A 5K remote potentiometer and instructions are supplied.
