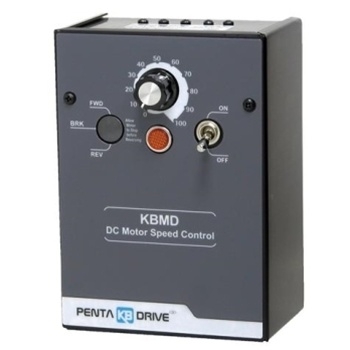

KBMD-240D w/FBR - KB Electronics DC SCR NEMA 1 Switch Reversing, 115/230 VAC, thru 0.75/1.5 HP, 90/180 VDC ARM (9371)

KBMD-240D-WITH-FBR - KB Electronics
KBMD-240D-WITH-FBR

Price: $235.90
Manufacturer SKU: KBMD-240D w/FBR
Manufacturer ID: 9371

Quantity in Stock:3

Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: KBMD-240D-WITH-FBR
Qty:

Description

KBMD-240D w/FBR - KB Electronics DC SCR NEMA 1 Switch Reversing, 115/230 VAC, thru 0.75/1.5 HP, 90/180 VDC ARM

Overview:

Multi-Drive represents the latest in state-of-the-art design for variable speed DC motor controls. It is rugged and compact is size and is able to handle both 115 and 230V AC line inputs by setting the built-in Dual Voltage Switch. In addition, the single model can be used on a wide range of motors by selecting and inserting the appropriate Plug-in Horsepower Resistor.

The standard model, KBMD-240D, controls allmotors through .75 Hp at 115V and 1.5 Hp at 230V. By installing the optional KB Auxiliary Heatsink, the horsepower range is increased to 1 Hp at 115V and 2 Hp at 230V. The versatility of the control is enhanced with the optional Forward-Brake-Reverse Switch Kit.

The electronics for the Multi-Drive consists of KB’s patented KBMM speed control module. Its field-proven reliability is confirmed by over 100,000 controls presently in operation. The KBMM module is housed in a rugged metal (not plastic, like other inexpensive drives) enclosure. Keyhole slots facilitate mounting while a readily accessible terminal block simplifies wiring. Included with each control is a detailed instruction and user manual.

Plug-in Horsepower Resistor Required The control must have a Plug-in Horsepower Resistor installed; purchased separately
Plug-in Line Fuse Included Fuse is included with the control
Plug-in Armature Fuse Available Provisions for mounting the fuse is provided, but the fuse is not included with the control. Plug-in Armature Fuses purchased separately


pdf Consult the Plug-in Horsepower Resistor and Plug-in Fuse Selection Charts for proper sizing based on motor horsepower and amperage.
KBMD240DWITHFBR
Additional Product Information

The KB Electronics Model KBMD-240D, also called Multi-Drive™, is a packaged SCR drive in a NEMA-1 enclosure. It utilizes the KBMM™ speed control for its electronics. The Multi-Drive™ is rugged and compact in size. It handles both 115 and 208/230 Volts AC line inputs by setting the built-in Dual Voltage Switch. In addition, the single model can be used on a wide range of motor horsepower by inserting the appropriate Plug-In Horsepower Resistor®. The Auxiliary Heat sink (optional) increases the rating of the basic unit to 1 HP at 90 VDC and 2 HP at 180 VDC. An optional Forward-Brake-Reverse Switch Kit is also available. Dimensions (L x W x H approx.): 5.1" x 5.4" x 7.1".
