JTD01.6 - Littelfuse 0JTD01.6T, UL CLASS J TIME-DELAY FUSES, Voltage: 600VAC, Amp Size: 1-6/10
JTD01.6 - Littelfuse
JTD01.6

Price: $30.02
Manufacturer SKU: JTD01.6
Manufacturer ID: 0JTD01.6T


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: JTD01.6
Qty:

Description Technical Specs

JTD01.6 - Littelfuse JTD Class-J T D

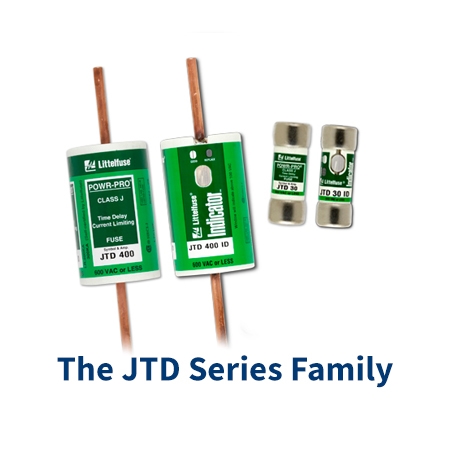

The JTD Series Family

The Littelfuse® POWR-PRO® JTD J fuse provides visual blown fuse indication and maximum protection in a compact package. The compact Class J package was designed specifically for circuits where space is at a premium. The current limiting time delay JTD offers a patented true dual-element design that is ideal for use in circuits with high inrush currents. Superior performance characteristics of JTD fuses reduce nuisance fuse opening and the blown fuse indication reduces downtime and increases safety.

Applications:
  • Fused combination motor controllers to provide IEC Type II (no damage) motor branch-circuit short-circuit and ground fault protection.
  • Motor control centers
  • Transformer protection
  • Protection for UL Listed series-rated molded case circuit breaker panels
  • General purpose circuits - mains, feeders and branch circuits - especially when space is at a premium.
Features:
  • Reduced down-time - A glance at the indicating window of a JTD fuse pinpoints open fuses immediately. If the window is dark, the fuse has opened. It's that simple. No fuse testing required. Machine operators can immediately determine that there is an open fuse and request maintenance personnel to bring the proper replacement.
  • Reduce nuisance opening - fuses have superior time-delay and cycling characteristics they can be used on a variety of applications, thus decreasing fuse inventory.
  • Reduce fuse inventory - Because JTD fuses have superior performance characteristics they can be used on a variety of applications, thus decreasing fuse inventory.
  • Reduce equipment damage - fuses provide superior overload and short circuit protection that can reduce equipment damage. fuses also provide IEC Type II "No Damage" protection to IEC and NEMA type motor starters.
  • Reduce accidents - The JTD fuse improves safety by minimizing exposure to live circuits. Unlike other forms of blown fuse indication, once the window darkens, it stays dark. It does not matter if the power is on or off or if the fuse is in a toolbox. Other forms of indication requires the power to remain on, which causes a safety hazard for personnel.
pdfDownload the The JTD Series catalog in *.pdf format
