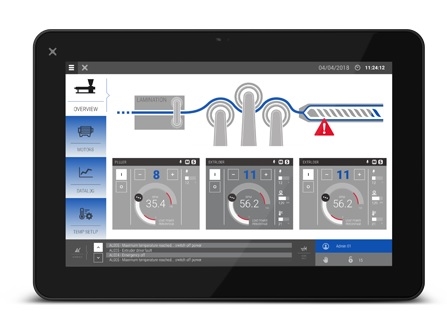

JSmart710 - Exor 10.1" TFT color display, resolution 1280x800 pixel

JSmart710 - Exor
JSmart710

Price: $2,885.00
Manufacturer SKU: JSmart710


Free Shipping
Availability: Usually Ships in 1 to 2 Weeks
Part Number: JSMART710
Qty:

Description Documents & Downloads

JSmart710 - Exor - 10.1" TFT color display, resolution 1280x800 pixel, 16M colors, dimmable backlight PCAP Touchscreen Multitouch, ARM Cortex-A9 dual core CPU

Overview

JSmart710 is the ideal product for field installation in critical areas. High-resolution 10.1” display with multitouch PCAP touchscreen with a robust glass front; touchscreen/display bonding for fidget optical performance.

Power-over-Ethernet (PoE) for maximum simplicity of connection using standard CAT5 wiring. The availability of a Wi-Fi interface enhances the device integration.

Full IP protection with the use of dedicated connectors for the maximum flexibility of installation, from mounting arm to a simple M22 hole. The product includes a full set of environment and motion sensors to make this device a true IIoT edge device for Industry 4.0 applications.

The JSmart product family has been optimized for use as an embedded browser or as a JMobile HMI device.

  • Performing HTML5-compatible browser with graphic accelerator
  • JMobile runtime with OPC UA Server and Client
  • Optional CODESYS V3 PLC for integrated HMI and control applications
  • Open platform for Linux applications
  • Built-in sensors (temperature and acceleration)
