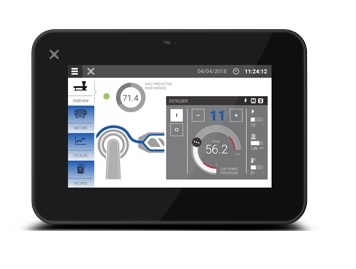

JSmart705 - Exor 5" TFT color display, resolution 800x480 pixel

JSmart705 - Exor
JSmart705

Price: $1,275.00
Manufacturer SKU: JSmart705


Free Shipping
Availability: Usually Ships in 1 to 2 Weeks
Part Number: JSMART705
Qty:

Description Documents & Downloads

JSmart705 - Exor - 5" TFT color display, resolution 800x480 pixel, 16M colors, dimmable backlight PCAP Touchscreen Multitouch, ARM Cortex-A9 dual core CPU

Overview:


JSmart705 is the ideal product for field installation in critical areas. High-resolution 5” display with multitouch PCAP touchscreen with a robust glass front; touchscreen/display bonding for fidget optical performance.

Power-over-Ethernet (PoE) for maximum simplicity of connection using standard CAT5 wiring. Full IP protection with the use of dedicated connectors for the maximum flexibility of installation, from mounting arm to a simple M22 hole. The product includes a full set of environment and motion sensors to make this device a true IIoT edge device for Industry 4.0 applications.

The JSmart product family has been optimized for use as an embedded browser or as a JMobile HMI device.

  • Performing HTML5-compatible browser with graphic accelerator
  • JMobile runtime with OPC UA Server and Client
  • Optional CODESYS V3 PLC for integrated HMI and control applications
  • Open platform for Linux applications
  • Built-in sensors (temperature and acceleration)
