JLLN003 - Littelfuse JLLN Class-T Fuse

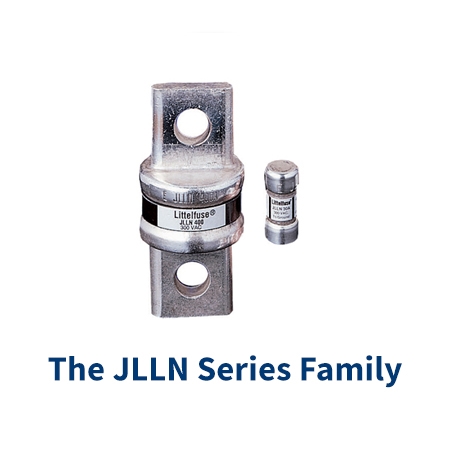

The JLLN Series Family
Space saving POWR-GARD Class T fuses are the most compact fuses available in ratings above 30 amperes - less than one-third the size of comparable Class R fuses. When rated in accordance with the NEC, Class T fuses provide fast-acting overload and short circuit protection for non-inductive circuits and equipment. Used in inductive circuits, the ampere rating of Class T fuses must be increased to prevent opening on inrush currents. In such instances, Class T fuses may provide only short circuit protection.
For motor and general purpose circuits where space is not critical, we recommend POWR-PRO™ JTD_ID Indicator series, LLNRK/LLSRK series, or FLSR_ID Indicator series.
Applications:
- Protection of individual electric services and meters.
- Main switches containing Class T fuses may be used to provide compact protection for meter stacks.
- Molded case circuit breaker load centers and panelboards have increased interrupting ratings when "series rated" with Littelfuse Class T fuses. Refer to panelboard manufacturers' literature for UL Listed combination of fuses and panelboards.
- Series ratings up to 200,000 amperes are available.
- Space Saving:
- Typical three-pole Class T fuse blocks require less than 50% of the panel area required for Class R fuse blocks. Switch enclosures, fuse pullouts, and other equipment using Class T fuses are often correspondingly more compact.
Safety:
- 200,000 A.I.R. - Reliable interruption of all overcurrents up to 200,000 amperes.
- Extremely current limiting - Stops damaging short circuit current faster than any mechanical protective device.
- Fast-Acting - Provides fast-acting overload protection to equipment such as variable speed drives, rectifiers and other equipment containing surge-sensitive components.
- Longer Equipment Life:
- Current limiting design greatly reduces damage to equipment caused by heating and magnetic effects of short circuit currents.
Economical:
- Extremely current limiting design often permits use of readily available, less costly equipment.
- Used as input or output fuses for surge-sensitive components, such as variable speed drives and rectifiers, fast-acting Class T JLLN/JLLS fuses may prevent opening of expensive semiconductor fuses protecting individual components.
 Download the The JLLN Series catalog in *.pdf format
| Ampere Rating (A) |
3 |
| VAC (V) |
300 |
| VDC (V) |
160 |
| Interrupting Rating |
20000A@125VDC |
| Opening |
Slo-Blo/Time Lag (T)/Time Delay |
| Package Size |
Industrial Cartridge |
|
|
|
 |
|
 |
|
