Eaton Cutler-Hammer (JGS2100FAG) Series G Circuit Breaker: JG-Frame, 2 Pole, 100 Amp, 40kA @ 415, 35kA @ 480V Fixed Thermal, Adj Magnetic

JGS2100FAG - Eaton Cutler-Hammer
JGS2100FAG

Price: $1,379.23
Manufacturer SKU: JGS2100FAG


Free Shipping
Availability: Usually 2 - 4 Weeks
Part Number: JGS2100FAG
Qty:

Description

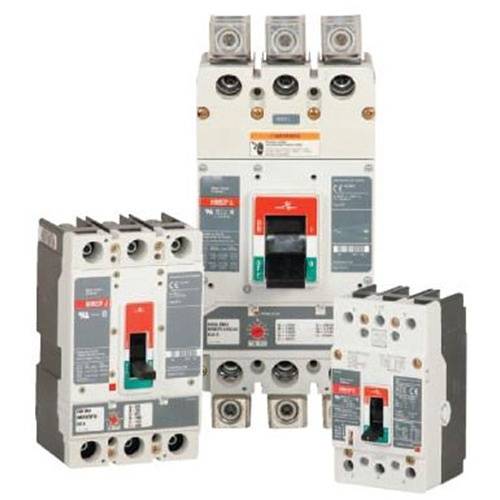

Molded Case Circuit Breakers
>Eaton Cutler-Hammer molded case circuit breakers provide increased performance in considerably less space than standard circuit breakers or comparable fusible devices. The "G" signifies global applications: Series G circuit breakers are marked with UL, CSA, CE, IEC and KEMA KEUR listings.

Other advantages include:

  • Field-fit accessories.
  • Common accessories through 630 amperes.
  • Electronic trip units from 20 to 2500 amperes.
  • Built-in ground fault protection down to 20 amperes.

The Eaton Series G family includes five frame sizes in ratings from 15 to 2500 amperes. Series G offers a choice of several interrupting capacities up to 100 kA at 480 volts ac (200 kA at 240 volts ac). Standard calibration is 40°C. The GE, GJ and GL frames are new circuit breakers designed around space-saving footprints. Eaton Series G Circuit Breakers meet applicable UL 489 and IEC 60947-2 standards.

The Most Logically Designed Contact Assembly
The flexibility and outstanding performance characteristics of Eaton Circuit Breakers are made possible by the best contact designs in circuit breaker history. Our patented technology creates a high-speed "blow-open" action using the electromechanical forces produced by high-level fault currents.
Eaton Circuit Breakers are operated by a toggle-type mechanism that is mechanically trip-free from the handle so that the contacts cannot be held closed against short circuit currents. Tripping due to overload or short circuits is clearly indicated by the position on the handle. This remarkably fast and dependable contact action is designed to enhance safety.

Thorough In-Plant Testing
The quality, dependability and reliability of every Eaton Circuit Breaker is ensured by a thorough program of in-plant testing. Two calibration tests are conducted on every pole of every circuit breaker to verify the trip mechanism, operating mechanism, continuity and accuracy.

ISO Certification
Eaton Circuit Breakers are manufactured in ISO certified facilities

Current Limiting Characteristics
Eaton Series G Circuit Breakers are current limiting because of their high repulsion contact arrangement and use of state-of-the-art arc extinguishing technology.

Operating Mechanisms
Eaton Circuit Breakers have a toggle handle operating mechanism, which also serves as a switching position indicator. The indicator shows the positions of: ON, OFF and TRIPPED.

The toggle handle snaps into the TRIPPED position if the breaker is tripped by one of its overcurrent, short circuit, shunt or undervoltage releases. Before the circuit breaker can be reclosed following a trip-out, the toggle handle must be brought beyond the OFF position (RESET). The circuit breaker can then be reclosed.

As an additional switching position indicator for GE- to GR-Frame circuit breakers, there are two windows on the right and on the left of the toggle handle, in which the switching state is indicated by means of the colors red, green and white corresponding to the ON, OFF and TRIPPED positions respectively.
