INFORMER - SymCom Remote Diagnostic Tool for Single-Phase Pumpsavers
Informer - SymCom
INFORMER

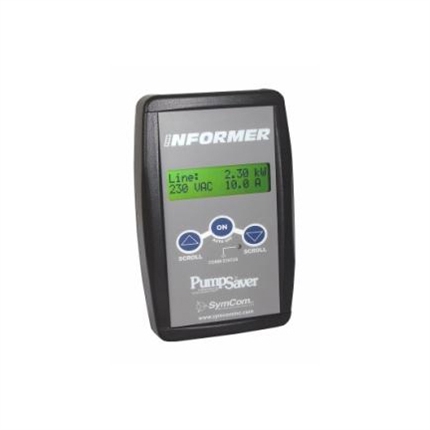

This is a family photo and may not be an accurate representation of the product.

Price: $187.35
Manufacturer SKU: Informer


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: INFORMER
Qty:

Description

INFORMER - SymCom Remote Diagnostic Tool for Single-Phase Pumpsavers

Informer
The Informer is a handheld diagnostic tool for use with single-phase PumpSaver® and PumpSaver®Plus models equipped with infrared LED transmitters. The Informer receives and displays data sent from the PumpSaver®, which can be helpful for troubleshooting the system.

Informer Specifications
Power
Input 9 Volts dc (requires one 9-volt alkaline battery)
Consumption 0.25 Watt max.
Automatic Shut-off 2 minutes
Communication
Signal Infrared
Range 1-10 ft.
Accuracy
Voltage ± 2%
Current ± 2%
Power ± 4%
Resolution
Voltage 1.0 VAC
Current 0.1 AMP AC
Power 0.01 kW
Display Liquid crystal
Size 2 rows x 16 characters
Keypad Three 0.5" buttons
Mechanical Life 50,000 actuations
Overlay Material Polyester
Enclosure
Dimensions 5.50" H x 3.60" W x 1.13" D
Weight 6 oz. (w/out battery)
Material Black polycarbonate
Operating Temperature 0-60°C
