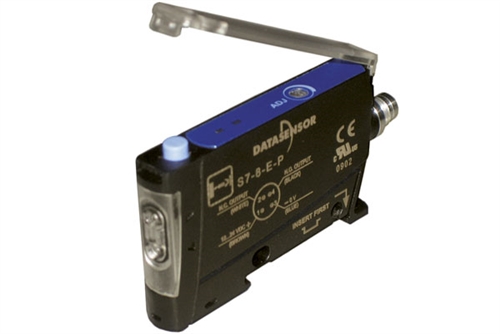

The S7 series is the first fiber optic amplifier to be manufactured in Europe that is equipped with a full 4 digit display, confirming Datasensor's technological leadership. With its slim 10mm body width, the S7 represents the ideal solution for all applications requiring high accuracy sensing combined with very compact dimensions. The high resolution 12 bit amplifier has a response time of 50 μs for a switching frequency of 10 KHz; 4096 resolution steps make the S7 series perfect for ultra high precision detection of small objects and low color contrasts. This is made easier by the integral 4 digit display, which clearly indicates the received signal, selected time delay and the adjustable set point values. Moreover, the white light LED emission possibility enhances the contrast detection.

Installing and setting the S7 is easy and rapid, thanks to the patent-covered CLEARLOCK fiber fixing and EASYtouch adjustment system that offers remote setting, key lock and activation of the output OFF delay function. Furthermore new versions of the S7 series are available with multi turn mechanical trimmer threshold adjustment for cost-oriented applications.

• 10 bit resolution models with 500 μs response for high operating distances
• 12 bit resolution models with 50 μs response and 4 digit display for high speed
• Cost-effective models with multi turn trimmer adjustment
• EASYtouchTM push-button setting with remote control, key lock and output delay
• Ultra-thin housing with CLEARLOCKTM patented fiber fixing system
