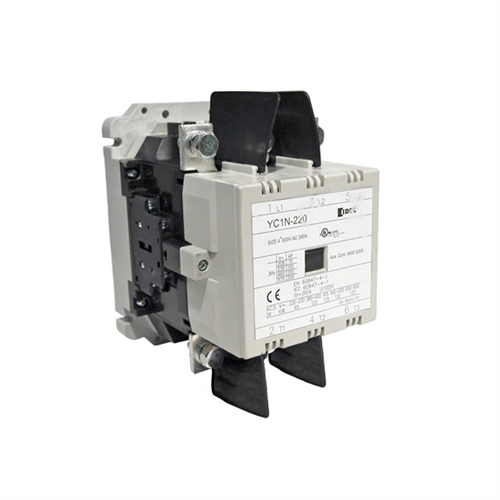

YC1N-300A480 - IDEC IEC 300A Contactor 3 Poles 480VAC Coil 2NO-2NC Auxiliary Contact

YC1N-300A480 - IDEC
YC1N-300A480

Price: $1,205.83
Manufacturer SKU: YC1N-300A480


Free Shipping
Availability: Usually Ships in 3 to 5 Business Days
Part Number: YC1N-300A480
Qty:

Description Technical Specs

YC1N-300A480 - IDEC IEC 300A Contactor 3 Poles 480VAC Coil 2NO-2NC Auxiliary Contact
IEC 300A Contactor 3 Poles 480VAC Coil 2NO-2NC auxiliary contact

The YC1N Series Family
IDEC now offers a new series of IEC-style contactors and starters, YC Contactors. These contactors feature weld-resistant silver alloy contacts, giving them a higher level of reliability and an extra long life. Contacts are also Cadmium-free for environmental safety.

YC overloads feature bimetallic thermal overload relays directly mounted to the contactor. Plus a full range of accessories are available for this series including top and side mounting auxiliary contact blocks, coil surge suppressors, timers and more. A mechanical interlock accessory can be used when using two contactors to reverse a motor, to prevent both sets of contacts closing at the same time.

Key Features
  • 35mm DIN rail or direct panel mounting
  • Switching current 5A-300A
  • Models available to switch from 1/3HP up to 200HP motors
  • Auxiliary contacts available
  • 50/60Hz AC coil and DC coil models available
  • Silver alloy, Cadmium-free, long-life contacts
  • Bimetallic thermal overload relays
  • Meets IEC, UL, c-UL and other international standards
  • CE marked
pdf Download the YC1N Series product brochure in *.pdf format
