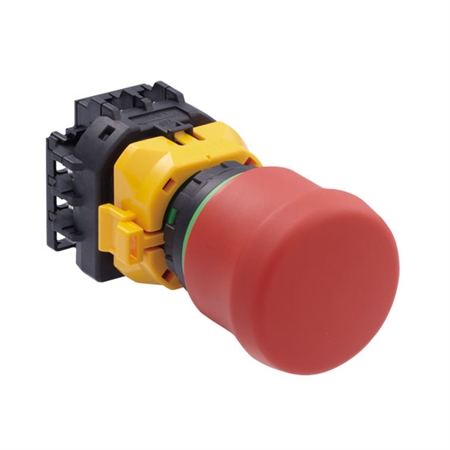

XW1E-BV4TG13MR - IDEC Emergency Stop with Indicator 3NC+1NO with Terminal Cover
The XW Series Family The XW series of Emergency Stop switches include a revolutionary new technology called "safe break action" that will change the way E-Stop switches are designed. This innovative concept provides greater levels of human safety and is the first of its kind in the world.
Conventional E-Stop switches are designed with spring pressure on the Normally Closed (NC) contacts, keeping them in the closed position and allowing the machine to operate. Improper installation or excessive force to the stop button in an emergency may break or dislodge a vital part, causing the spring loaded contact to stay closed. This situation renders the E-Stop incapable of stopping the machine and can lead to catastrophic events, personal injury and possible loss of life.
This one-of-a-kind "safe break action" design, found only in the IDEC XW, XA, and X6 series, reverses the energy direction and uses the spring-pressure to assure that the NC contacts will open if the emergency switch is damaged or the contact blocks separate due to excessive force. The NC contacts will reliably open, even if they are welded, and stop the machine.
XW series switches offer up to four "safe-break" contacts with a depth behind the panel that is half the size of conventional E-Stop switches. This means that there is an additional contact available and the switches can be used in Level 4 safety category applications.
New additions to the XW series include a smooth button, which resists dirt buildup and contamination, making it ideal for food, beverage, and pharmaceutical applications. And the attractive appearance and rugged construction make it suitable for a wide variety of commercial and industrial applications. These new models also include a green mechanical indicator, which allows an operator to view the status of the switch from a distance.
The XW E-Stop switches are secured from the rear of the control panel so that the E-Stop cannot be removed from the front. Another unique feature of the XW E-Stop switches is that either a push-turn or push-pull reset method can be used to reset the switches. This eliminates any possible confusion for operators when resetting the switch. The durability and quality of these new E-Stop switches make them extremely reliable. They can withstand the highest stress caused by panic or a reaction to an emergency situation.
Key Features
- IDEC's innovative "safe break action" ensures all NC contacts open if the contact block is separated from the operator
- NEW Smooth button option resists dirt buildup, and provides attractive appearance
- Smooth button models also feature green mechanical status indicator
- Pushlock turn reset and push-pull functions built into same unit
- The depth behind the panel is only 48.7mm for traditional button, and 46.4mm for smooth button
- Direct opening action mechanism (IEC60947-5-5, 5.2, IEC60947-5-1, Annex K)
- Degree of protection IP65 (IEC60529)
- UL recognized, c-UL approved, EN compliant
Download the Switching & Controls Family Catalog in *.pdf format
Download the Quick Selection Guide in *.pdf format
Download the XW Series catalog in *.pdf format
Download the XW Smooth Button datasheet in *.pdf format
Download the XA/XW EMO datasheet in *.pdf format
Download the XA, XW & XN datasheet in *.pdf format
Product Type |
Emergency-Stop |
Operation Type |
Push Lock - Turn Reset|Push-Pull |
Mounting Hole Size |
Φ22mm |
Color |
Red |
Illuminated |
No |
Normally Open Contacts |
1 |
Normally Closed Contacts |
3 |
|
|
